หมวดหมู่สินค้า: Test Sieves
เครื่องมือที่ใช้สำหรับแยกอนุภาคของวัสดุต่างๆ ตามขนาดของรูตาข่าย โดยมีวัตถุประสงค์เพื่อวิเคราะห์ขนาดและการกระจายขนาดของอนุภาค ซึ่งเป็นข้อมูลสำคัญในการควบคุมคุณภาพของผลิตภัณฑ์หลายประเภท
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
12 มีนาคม 2569
ผู้ชม 14 ผู้ชม

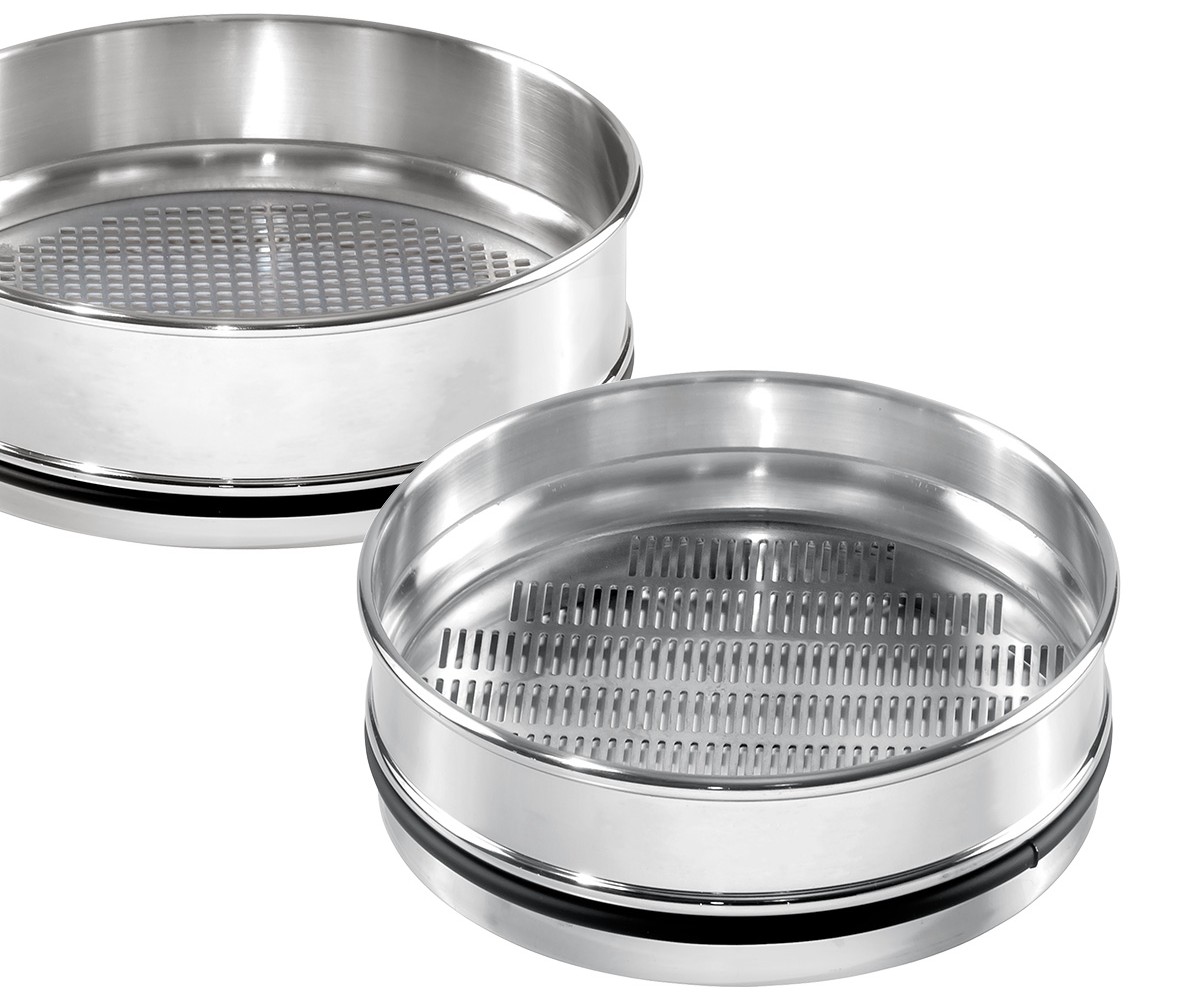

Test Sieves with stainless steel frames and openings from 5 micron
NEXOPART Test sieves: Recognized, tested and a measuring device according to DIN ISO 3310 and ASTM standard.
Description
|
|
|||
|
|
|||
|
65 | |||
|
Standard |
| Conforming to international standards |
| Fabricated according to valid standards: ISO 3310, ASTM E11, DIN ISO 3310, BS ISO 3310, ISO 5223 etc. |
| Your advantages at a glance |
| • A particularly smooth surface of frames prevents cross-contamination. • An extremely stable sieve structure guarantees a long life. • The sieve fabric retains its tension exceedingly well even after intensive use. • Compatibility with equivalent test sieves manufactured in accordance with current standards. |
| Technical data |
| We provide sieve media of electroformed sheets with aperture sizes from 5 micron up to 500 micron, sieve media of woven wire cloth with aperture sizes from 20 micron up to 125 mm and perforated plates made from galvanized steel* with openings from 4 mm up to 125 mm. *Sieves with perforated plates made from galvanized steel have to be stored in a dry place and must be cleaned and dried after use. |
| Diameter [mm] | 50 | 76,2 | 100 | 150 | 200/203 | 250 | 300 | 305 | 315 | 350 | 400 | 450 |
| Nominal height [mm] | 25 | 25 | 45 | 50 | 32/50 | 55 | 30/60 | 60 | 75 | 60 | 65 | 70 |
A NEXOPART test sieve is manufactured in compliance with the current test sieve standards and meets the requirements for a measuring instrument in accordance with ISO / IEC Guide 99:2007 to 100 percent. In addition to the standard test sieves, NEXOPART's product portfolio also includes grain sieves and tobacco sieves. A variety of frame materials such as stainless steel, wood or aluminum round off the range. First and foremost, you will be delighted with the accuracy and stability of NEXOPART test sieves.
 |
 |
Example: Blasting material for particle analysis
Products with high availability and a range of mesh sizes from 5 µm to 125 mm NEXOPART offers a wide range of test sieves, whether for manual sieving, conventional sieving, wet or dry sieving - you will find mesh sizes from 5 µm to 125 mm for analyzing your bulk material. Once you have found the right test sieve for you, you have nothing else to worry about. You do not have to wait long for your test sieve either. The components and materials for our test sieves are made in Germany, which means we can offer you high product availability and reasonably short delivery times. We also ensure short transportation routes and largely secure supply chains. At NEXOPART, you will always find the right standard-compliant test sieve for your sieving requirements - the test sieve that finds its way to you quickly.
|
 |
Long service life and perfect performance for your test sieve.
To ensure the long service life of a test sieve, we at NEXOPART use high-quality frame materials and our team has developed an extremely stable sieve design. In particular, the smooth frame surface of the test sieve prevents cross-contamination so that the sieve mesh retains good tension even after intensive use. The meticulous workmanship of the NEXOPART test sieve assures you perfect performance. Rely on test sieves made in Germany. Rely on NEXOPART.
|
Test certificates and services for your test sieve.
On request, NEXOPART will provide you with extensive test certificates and services for sustainable and compliance-oriented quality assurance. Everything from recertification of the measuring equipment in our factory laboratory – tested in accordance with DIN EN 10204 with acceptance test certificate 3.1 – to accredited calibration of metal mesh test sieves in accordance with DIN EN ISO/IEC 17025. This ensures traceability to the national measurement standards.
Take a look at how the NEXOPART UFA makes it possible to sieve fine powders at critical separation cuts of ≤ 300 μm with NEXOPART test sieves.
That could interest you as well:
• Inspection documents according to EN 10204
| Type | Document contenct |
|---|---|
| Declaration of compliance with the order 2.1 | Statement of compliance with the order. |
| Inspection certificate 3.1 | Statement of compliance with the order, with indication of results of specific inspection. |
 |
The free certificate of works 2.1 according to DIN EN 10204 supplied with test sieves basically certifies that the sieves are manufactured in compliance with the requirements for quality assurance according to ISO 9001. |
 |
On request we also issue acceptance test certificates 3.1 according to DIN EN 10204. For this a certification or calibration must be carried out. During calibration, three times more meshes are measured than during certification. The measurement results are stored and are available for later control measurements. |
| • Calibration certificate acc. to DIN EN ISO / IEC 17025 | |
| Accredited calibration laboratory | |
 |
Ever increasing tougher demands that go beyond the normal standards are now being placed on the reliability of test sieves in an increasing number of application areas. Haver & Boecker meets these demands and, since June 2013, has become Germany’s first accredited calibration laboratory for test sieves of metal wire cloth as to DIN EN ISO / IEC 17025. The calibration certificates for test sieves of metal wire cloth serve as proof of conformance to national and international standards and are recognised internationally by the signatory states within the scope of conventions (EA, ILAC, etc.). |
| DIN EN ISO/IEC 17025 | |
| This standard contains all requirements to be met by testing and calibration laboratories to manage quality (min. According to DIN EN ISO 9001) and technically competent and able to generate technically valid results to prove. The calibration of test sieves with woven wire cloth according to DIN EN ISO / IEC 17025 expands the current review of test sieves with inspection certificate 3.1 according to EN 10204. The uncertainty mentioned in the calibration certificate is used in the subsequent use of the measuring instrument for correcting of the readings. | |
| Requirements for competence in testing and calibration laboratories as to DIN EN ISO / IEC 17025 | |
| • Assurance of expertise and competence • Quality management according at least to DIN EN ISO 9001 • Transparency of measurement results • Measurements under clean room conditions • Measurement results that are expertly based • Indication of measurement uncertainties • Traceability of used measurement devices to national / international standard |
|
| If you send us used test sieves, please note the following: | |
| • The test sieves have to be cleaned by the customer. • QThe test sieves have to be free from any contaminations. • Please submit a declaration of no objection. |
