หมวดหมู่สินค้า: Test Sieves
ตะแกรงร่อนมาตรฐาน (Test Sieve) ที่ออกแบบมาใช้กับ เครื่องร่อนแบบลม (Air Jet Sieve) ของระบบ ALPINE เพื่อใช้วิเคราะห์ขนาดอนุภาคของวัสดุชนิดผงที่มีความละเอียดมาก โดยตะแกรงรุ่นนี้มี ขนาดรูตา 20 ไมครอน (µm)
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
11 มีนาคม 2569
ผู้ชม 32 ผู้ชม
ALPINE Test Sieves with openings from 20 micron
If you know the Air Jet Sieve by ALPINE, you also know the corresponding test sieves by HAVER & BOECKER. Finest dry bulk materials can be analysed with this machine. In addition to test sieves for the 200 LS and 200 LS-N we quote the special execution for the e 200 LS with fully automatic sieve detection.

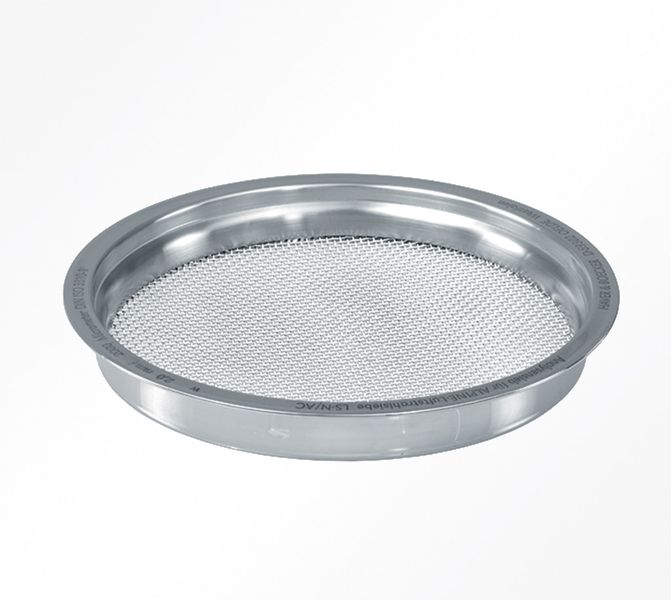

Alpine Test Sieve 200 LS-N
| Conforming to international standards |
|---|
| • Fabricated according to valid standards: ASTM E11, DIN ISO 3310, BS ISO 3310 |
Your advantages at a glance
• A particularly smooth surface of frames prevents cross-contamination.
• An extremely stable sieve structure guarantees a long life.
• The sieve fabric retains its tension exceedingly well even after intensive use.
• Test Sieves e 200 LS: fully automatic sieve recognition due to a plastic transponder chip.
• An extremely stable sieve structure guarantees a long life.
• The sieve fabric retains its tension exceedingly well even after intensive use.
• Test Sieves e 200 LS: fully automatic sieve recognition due to a plastic transponder chip.
| 200 LS | 200 LS-N | e 200 LS | |
|---|---|---|---|
| Dimensions[mm] | 200 x 25 | 203 x 28 | 300 x 300 x 75 mm |
| Sieve frame | stainless steel | stainless steel | stainless steel |
| Feature | sealing ring | transponder (plastic chip) |
All ALPINE Test Sieves are equipped with a sieve medium of stainless steel metal wire cloth with aperture sizes from 20 micron up to 4 mm.
Application examples for ALPINE Test Sieves
ALPINE Air Jet Sieves are used for particle size distribution of powdery materials from 20 micron.
Alpine Test Sieve 200 LS
| An air flow exiting the rotating slotted nottle purges the sieve gauze continuously. This leads to short sieving times and ensures that even those materials which are known to cause difficulty can be sieved successfully. The Alpine Air Jet Sieve and our corresponding test sieves are used in different industries like pharmacy, chemical or food industry. |
A NEXOPART test sieve is manufactured in compliance with the current test sieve standards and meets the requirements for a measuring instrument in accordance with ISO / IEC Guide 99:2007 to 100 percent. In addition to the standard test sieves, NEXOPART's product portfolio also includes grain sieves and tobacco sieves. A variety of frame materials such as stainless steel, wood or aluminum round off the range. First and foremost, you will be delighted with the accuracy and stability of NEXOPART test sieves.
 |
 |
Example: Blasting material for particle analysis
Products with high availability and a range of mesh sizes from 5 µm to 125 mm NEXOPART offers a wide range of test sieves, whether for manual sieving, conventional sieving, wet or dry sieving - you will find mesh sizes from 5 µm to 125 mm for analyzing your bulk material. Once you have found the right test sieve for you, you have nothing else to worry about. You do not have to wait long for your test sieve either. The components and materials for our test sieves are made in Germany, which means we can offer you high product availability and reasonably short delivery times. We also ensure short transportation routes and largely secure supply chains. At NEXOPART, you will always find the right standard-compliant test sieve for your sieving requirements - the test sieve that finds its way to you quickly.
|
 |
Long service life and perfect performance for your test sieve.
To ensure the long service life of a test sieve, we at NEXOPART use high-quality frame materials and our team has developed an extremely stable sieve design. In particular, the smooth frame surface of the test sieve prevents cross-contamination so that the sieve mesh retains good tension even after intensive use. The meticulous workmanship of the NEXOPART test sieve assures you perfect performance. Rely on test sieves made in Germany. Rely on NEXOPART.
|
Test certificates and services for your test sieve.
On request, NEXOPART will provide you with extensive test certificates and services for sustainable and compliance-oriented quality assurance. Everything from recertification of the measuring equipment in our factory laboratory – tested in accordance with DIN EN 10204 with acceptance test certificate 3.1 – to accredited calibration of metal mesh test sieves in accordance with DIN EN ISO/IEC 17025. This ensures traceability to the national measurement standards.
Take a look at how the NEXOPART UFA makes it possible to sieve fine powders at critical separation cuts of ≤ 300 μm with NEXOPART test sieves.
