เครื่องทดสอบความแข็งแบบ Vickers (Benchtop automatic Vickers Hardness Tester) ยี่ห้อ Adelix รุ่น ADL HV10/30/50 (SIT869)
หมวดหมู่สินค้า: Adelix
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

03 พฤศจิกายน 2568

ผู้ชม 1 ผู้ชม

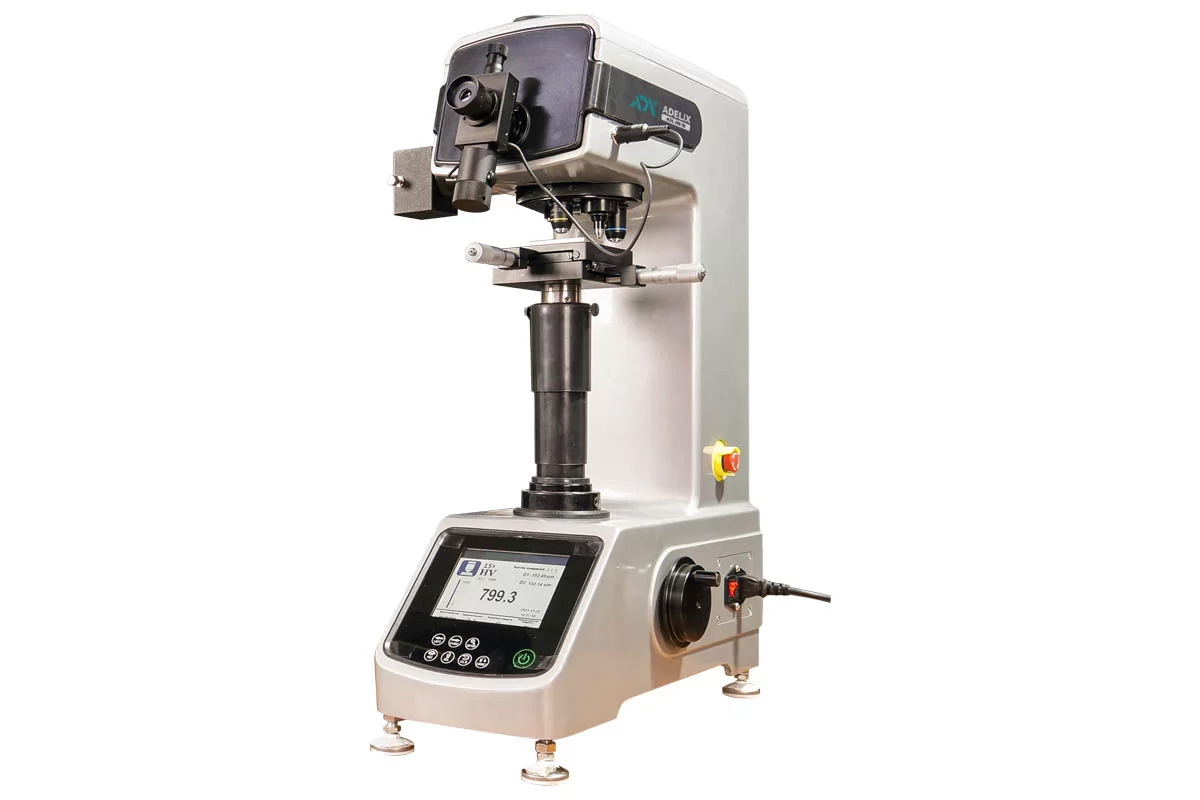

Benchtop automatic Vickers Hardness Tester ADL HV10/30/50

Benchtop automatic Vickers hardness tester ADL HV10/30/50 – Hardness measurement with Vickers method in the load range of 0.3-10 kgf / 2-30 kgf / 1-50 kgf. Automatic process tracing and hardness calculation.

Main features

It is a stationary automatic hardness tester according to Vickers ADL HV-10/30/50 for measuring the hardness of samples made of metals and alloys according to standards.

The reduced friction loading mechanism ensures high test accuracy. It is possible to measure the hardness of thin samples, samples with coatings, samples with heat-treated and impregnated surfaces.

A large display panel with membrane keyboard to set the test parameters (load value, hold time) and display the current test step and the instant value of the operating parameter during the test. Adjust the brightness of the backlight.

Automatic loading, holding and removal of the load are available. Process trace analysis using an instrument-mounted eyepiece-micrometer with 20x and 10x magnification. supply of markers to the corners of the print by turning a special wheel, automatic calculation of the hardness and display of the value on the screen.

The hardness tester can be supplied with a digital camera and BVHT P-version software to measure and calculate the hardness in a computer program.

A unique offering of the company is the production of hardness testing blocks measurements from customers’ materials, including stainless steel, cast iron, copper and aluminum alloys.

Specifications:
Parameter Value
Scale HV
Test loads ADL HV-10: 0.3; 0.5; 1; 3; 5; 10 kgf.
ADL HV-30: 2; 3; 5; 10; 20; 30 kgf.
ADL HV-50: 1; 5; 10; 20; 30; 50 kgf.
Waiting time 5 – 60 sec
Turret Simultaneous installation of 2X lenses and 1-th indentor allowed
Indenters Vickers Pyramid
Lens х10; х20
Lens х10
Measurement system Electronics.
Scale x100 increasing up to 800 microns and x200 increasing up to 400 microns
Step 0.1 micron
Image capture device With camera adapter
Lighting Lamp 12V, 15-20W
Monitor Dimmable LCD display
Interfaces RS 232
Workspace portrait / landscape 170mm
Power supply 220 V / 50 Hz
Overall Dimensions 530x225x630mm
Weight 50 kg
