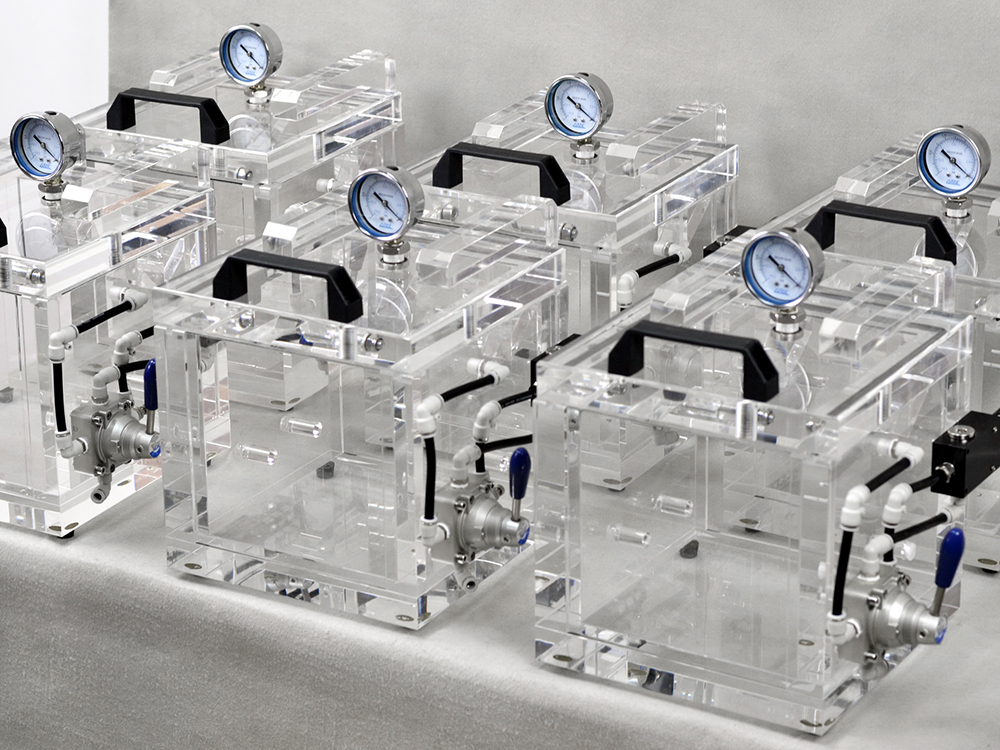

VLT-ECO Vacuum Leak Tester (ECO Model)

(Air and water tightness test box: vacuum test)

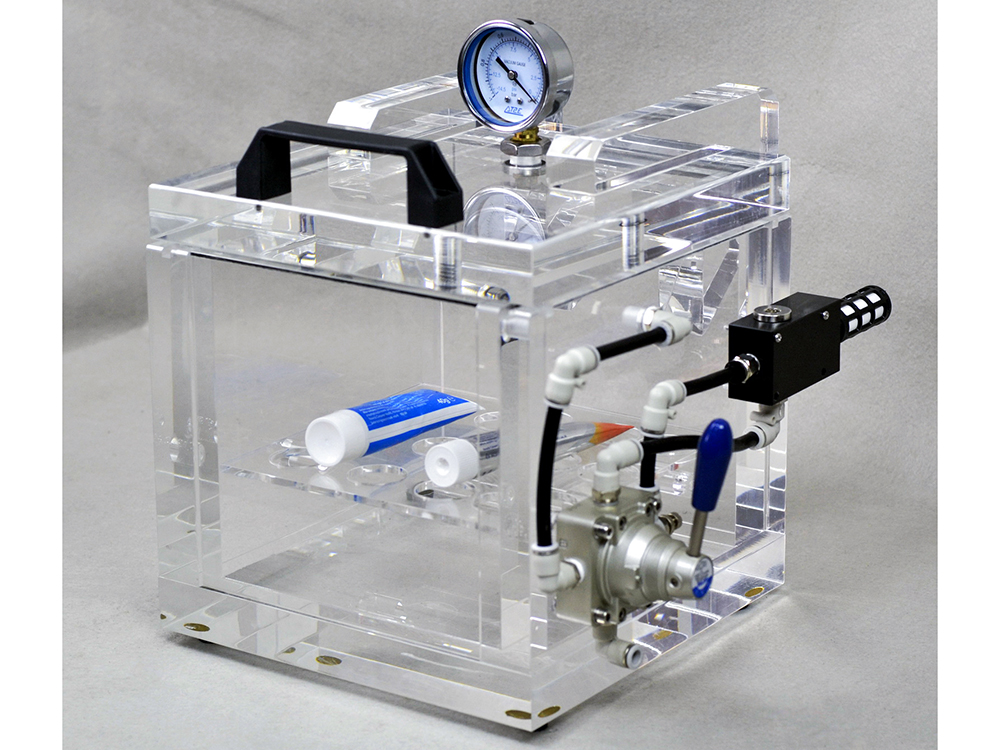

With Vacuum Generator

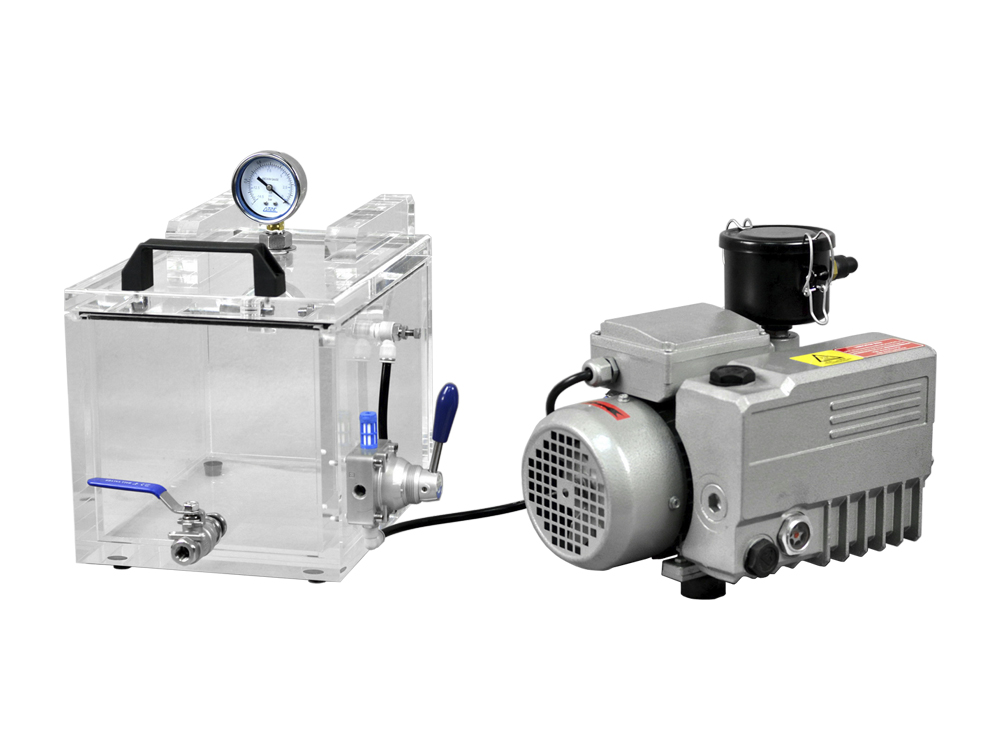

With Vacuum pump

Tests on:

Bottles: Glass or PET and Preforms

Caps: Aluminium, other metal, plastic

Cans: Aluminium, others

Pots: caps, film, blisters etc.

Specifications:

• Vacuumadjustable up to - 999 mb
• Box withdimensions upon request
• Box made of polishedtransparent PMMA (very rugged)
• Easy to use andsafe
• Equipped with manometer
• Equipped with 3-directions valve forcontrolling the flow
• Accuracy: 0.5% of the measure
• Equipped with vacuum generator
• Runs with6 bar network
• Quick and easy of verification and calibration
• Adjustable temporization to keep vacuum or pressure

Optional parts:

• Immersionsystem
• Shelf structure
• Stainless box
• Pressure or pressure and vacuum model (pressure up to 1 bar)
• Oil-free vacuum pump (vacuum -900 mb)
• High performancepump (vacuum -999 mb)

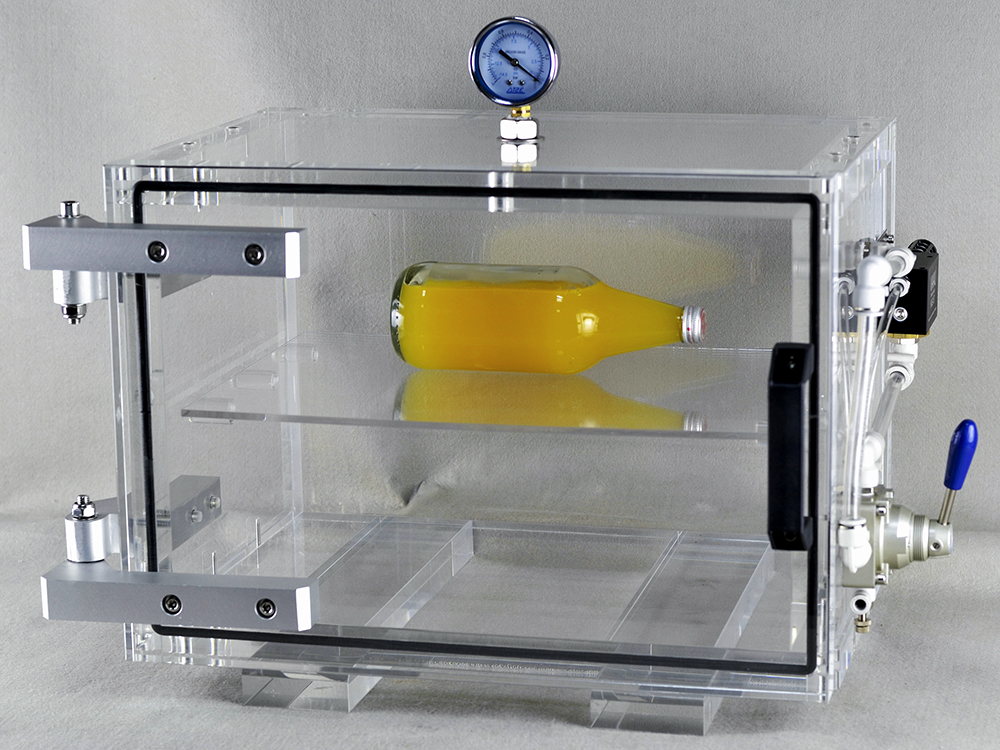

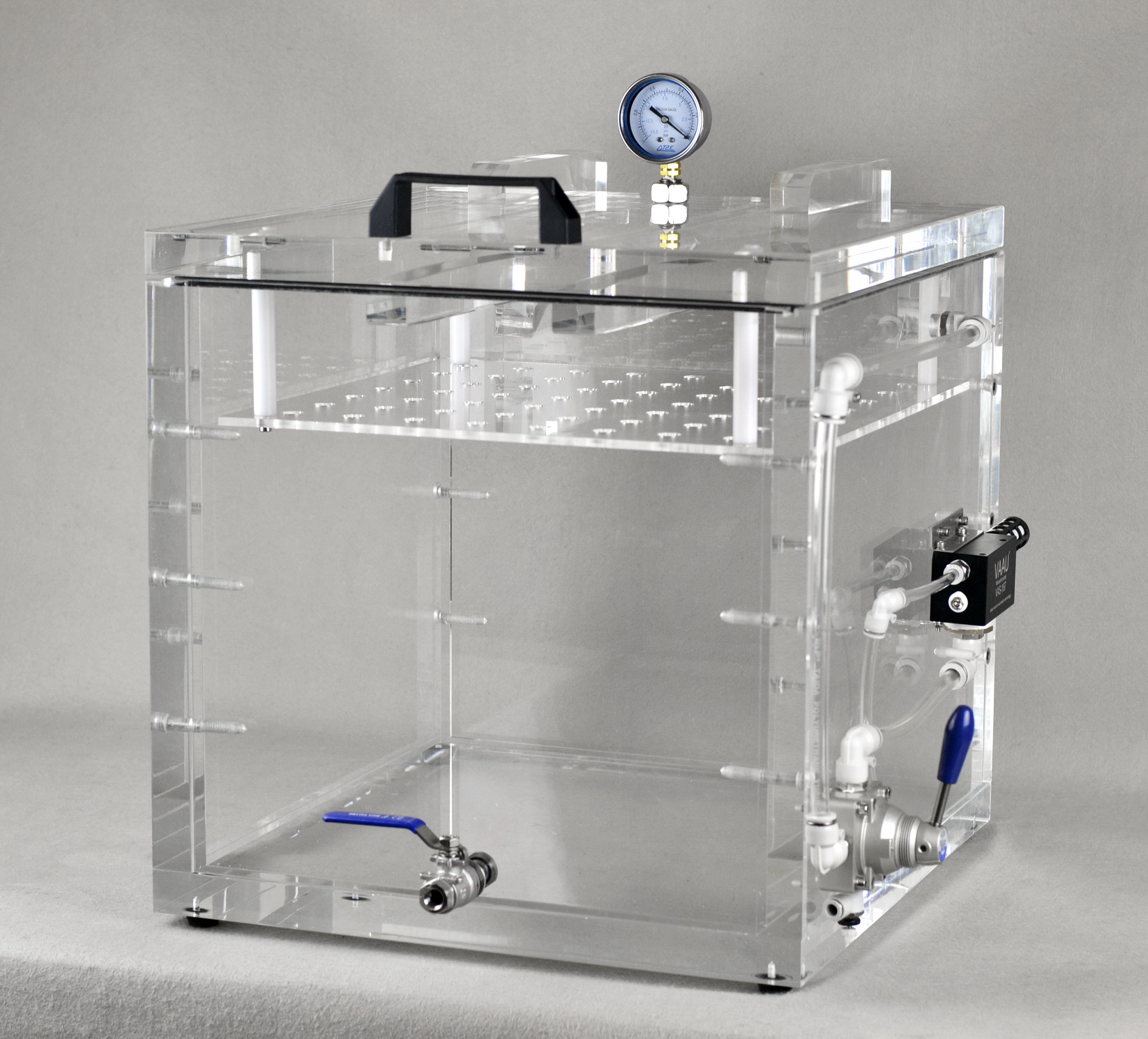

VLT-ECO with shelf

Round VLT-ECO

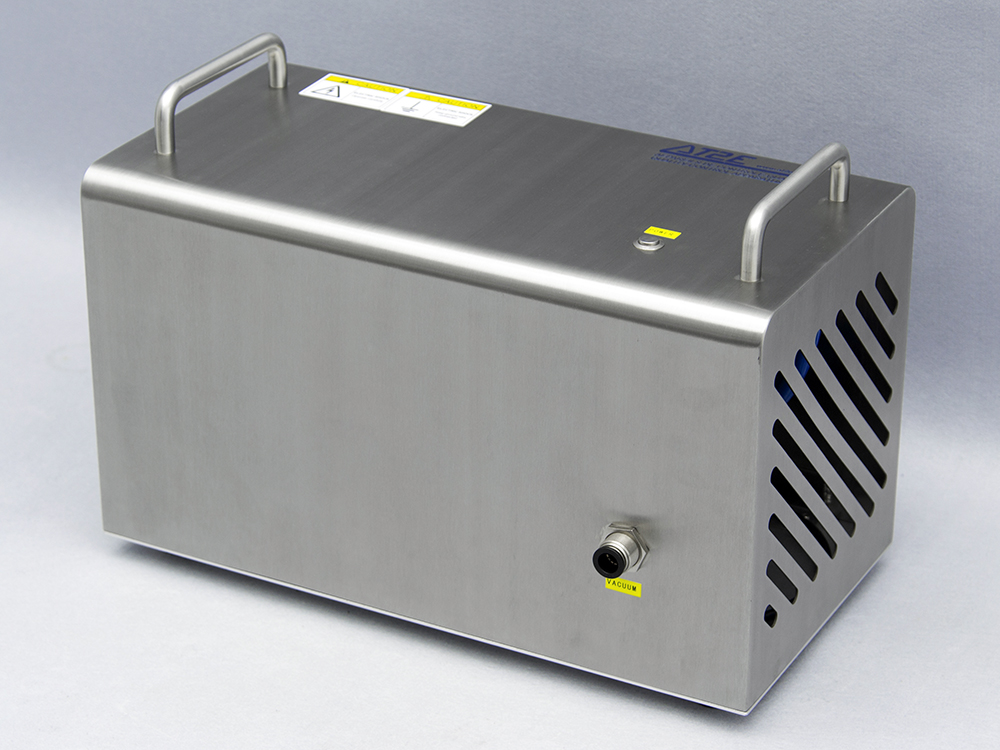

Oil-free vacuum pump

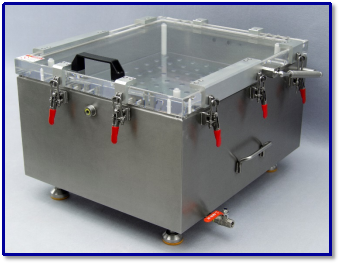

Stainless box
