Single point load cell. Oil damped.
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
04 มิถุนายน 2567
ผู้ชม 1195 ผู้ชม

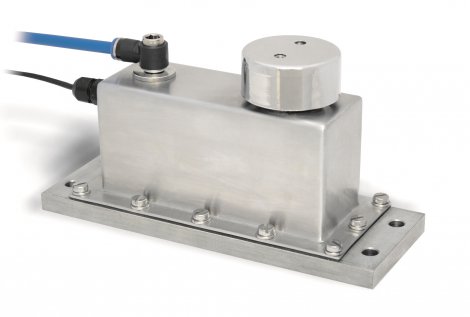

Double bending beam load cell. Viscous damping specially for use in dynamic weighing applications. Stainless-steel housing. Protected agains humidity IP68 (EN 60529). Single point load cell, for off-center loads on platforms up to 500x500 mm (for capacities 5..35kg) and 600x600mm (for capacities 50..200kg). Integrated on-center overload protection, with a dual stopper for up and down loads.
- Double bending beam load cell
- Viscous damping specially for use in dynamic weighing applications:
faster settling time, higher weighing speeds and increase of load cell. - Stainless-steel housing.
- Protected agains humidity IP 68 (EN 60529)
- Single point load cell, for off-center loads on platforms up to 500x500 mm.
- Integrated on-center overload protection, with a dual stopper for up and down loads.
Technical specification
| Nominal capacities | 5-7,5-10-15-20-35-50-75-120-200 | kg |
|---|---|---|
| Accuracy class | 3000 | n. OIML |
| Minimum dead load | 0 | %Ln |
| Service load | 120 | %Ln |
| Safe load limit | 150 | %Ln |
| Total error | < ± 0.013 | %Sn |
| Repeatability error | < ± 0.01 | %Sn |
| Temperature effect on zero | < ± 0.01 | %Sn/5K |
| Temperature effect on sensitivity | < ± 0.006 | %Sn/5K |
| Creep error (30 minutes) | < ± 0.012 | %Sn/5K |
| Temperature compensation | -10 až +40 | ° C |
| Temperature limits | -20 až +70 | ° C |
| Nominal sensitivity (Sn) | 2 ± 10% | mV/V |
| Nominal input voltage | 10 | V |
| Max. input voltage | 15 | V |
| Input impedance | 400 ± 20 | Ohm |
| Output impedance | 350 ± 3 | Ohm |
| No load output | < ± 2 | %Sn |
| Insulation resistance | > 5000 | MOhm |
| Max.deflection (at Ln) | 0.2 - 0.4 | mm |
