Multimodule Vortex Mixer Product Features

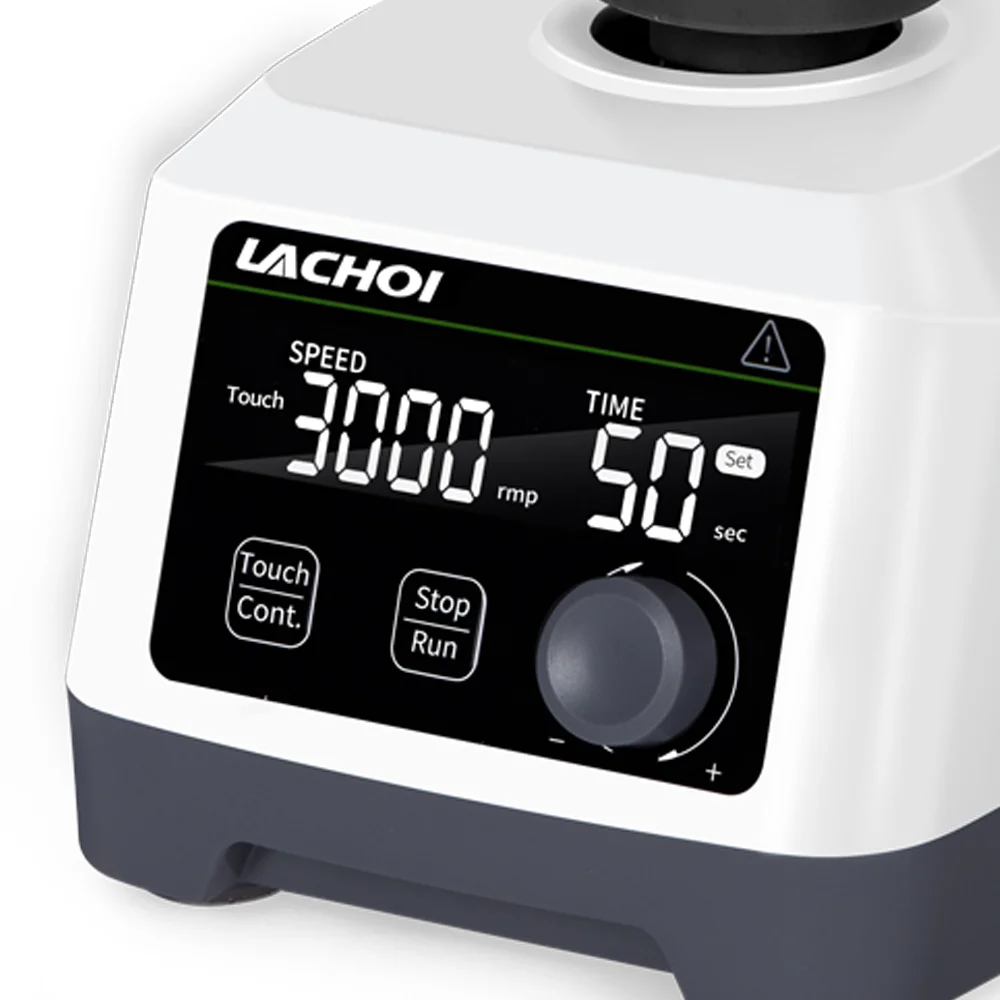

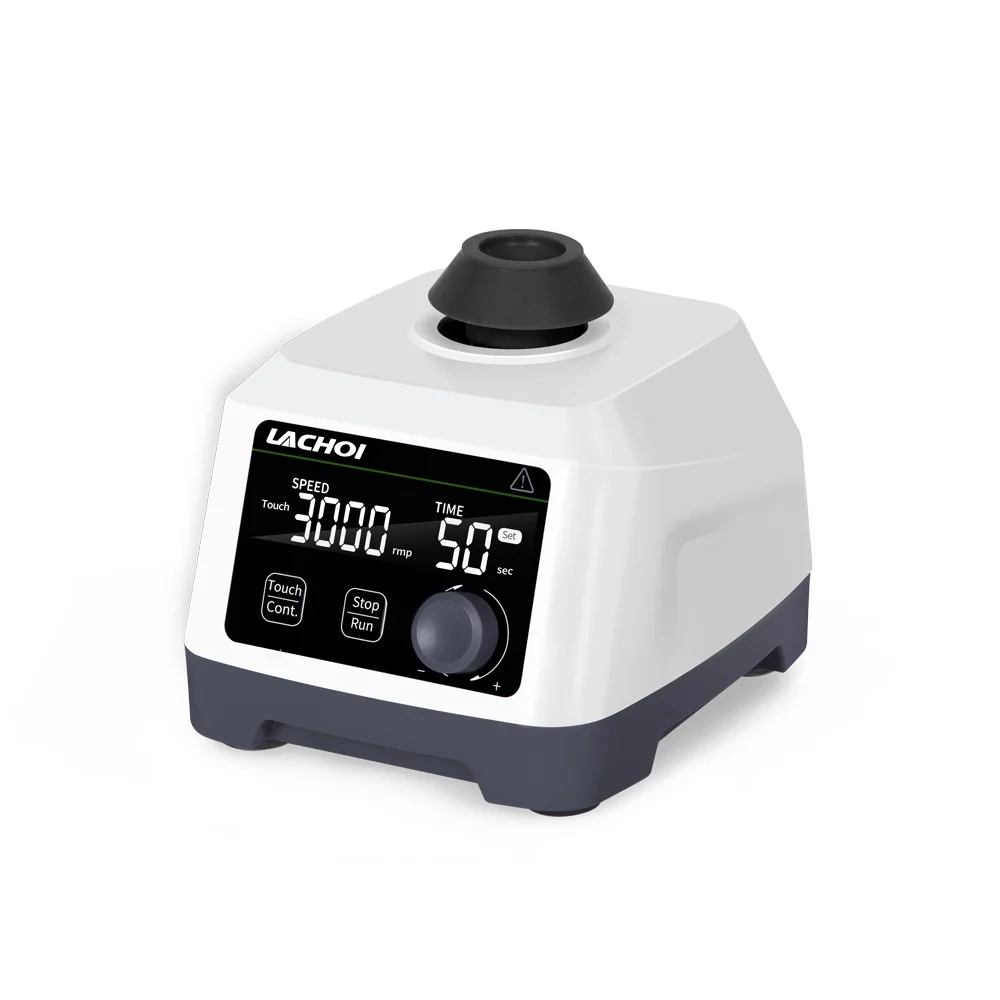

◇ The large LCD screen displays the speed and time, which is convenient for setting and reading;
◇ Suitable for short time (jog) or long time continuous work;
◇ Brushless DC motor, long life, strong power, maintenance-free;

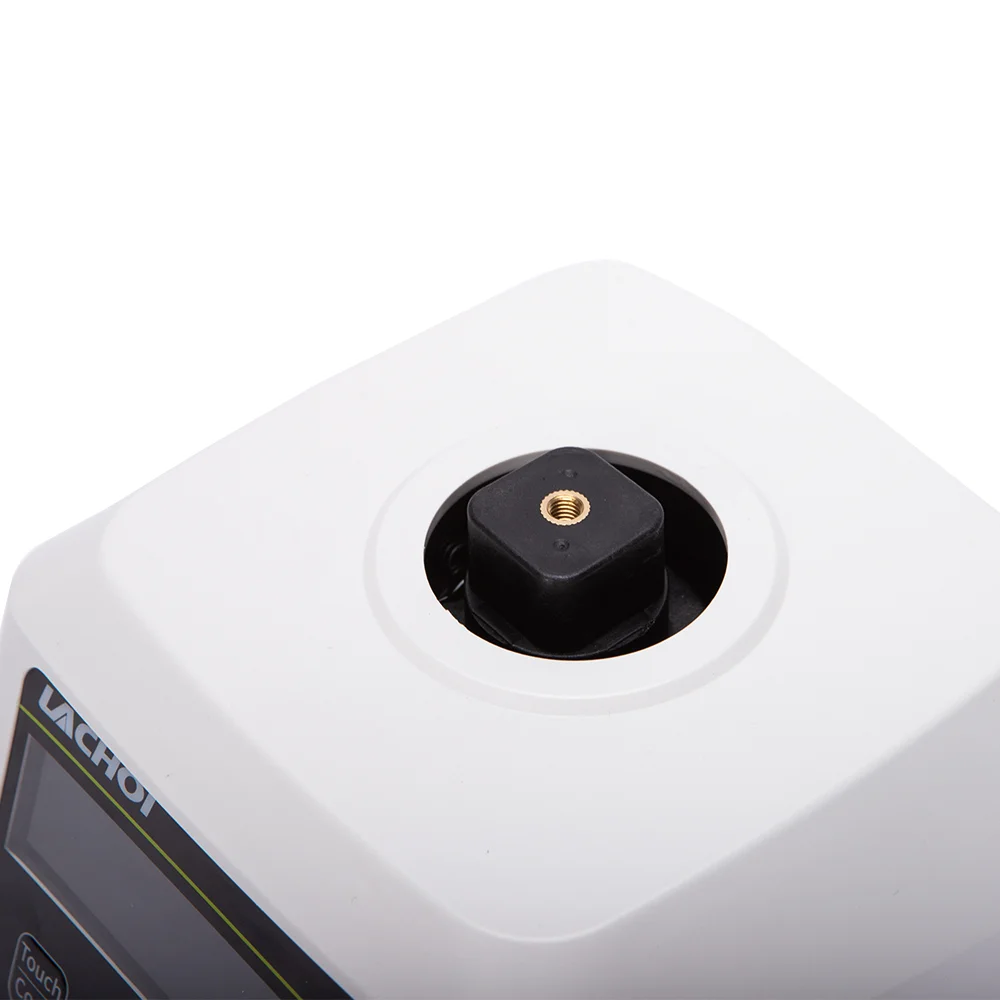

◇ Special vibrating head, strong toughness, sufficient elasticity, and long service life;
◇ Wide speed range, the maximum speed is 3000 rpm, stepless speed regulation;
◇ The module is easy to install, and the eccentric bearing design is durable;
◇ Using high-quality foot pads, the instrument has good stability and low operating noise.
Multimodule Vortex Mixer Specification
|
Model |
LCH-MX-F |
LCH-MX-S |
LCH-MX-T |
|
Voltage |
Input：AC100-240V（50/60Hz） Output：12V 2A |
||
|
Power |
20w |
||
|
Display |
/ |
Scale |
LCD Screen |
|
Oscillation Mode |
Circle |
||
|
Turnover Of Diameter |
4.5mm |
||
|
Speed Range |
3000rpm |
200-3000rpm |
100-3000rpm |
|
Display Of Speed |
/ |
Scale |
LCD Screen |
|
Timing Range |
/ |
/ |
0-99min |
|
Mode Of Operation |
Continuous Operation/Point Operation |
||
|
Net Weight kg |
2.5 |
2.6 |
|
|
Gross Weight kg |
2.8 |
||
|
Dimension mm |
145×160×115 |
||
|
Packing Size mm |
37×21×18 |
||
Multimodule Vortex Mixer Packing List
