Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056 Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056 Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056 Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056 Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056

Multi-jaw Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1056
หมวดหมู่สินค้า: Tensile / Pull
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

20 มีนาคม 2566

ผู้ชม 297 ผู้ชม



Grips & Attachments
Mark-10 grips and attachments are integral components of testing systems, designed for a wide range of tension, compression, and torque applications. These grips and attachments are able to mount to Mark-10 force gauges, torque gauges, sensors, and test stands. Eye end adapters may be used with some gauges and sensors for quick-change convenience and compatibility with third party equipment.
 Data Sheet - All Grips
Multi-jaw Grip (G1056)
This unique and universal grip is designed for gripping round and irregularly shaped items. The jaws open and close as the housing is rotated. Typical applications including pull-off tests of fasteners and components in the toy, clothing, and other industries.

 ● 100 lbF [500 N] capacity
 ● Spring-loaded lever
 ● Serrated steel jaws
 ● Swiveling mounting attachment
 ● Thru slot for samples of unlimited width
Capacity x Resolution: 5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF,
1000 x 0.2 gF, 10 x 0.002 N
Accuracy: ±0.1% of full scale
Sampling rate: 7,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Outputs: USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ± 1 VDC, ± 0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 1 lb [0.5 kg]
Shipping weight: 3 lb [1.4 kg]
Included items: Carrying case with hook, chisel, cone, V-groove, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR®Lite software, MESUR®gauge and MESUR®gauge Plus 90-day trial, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
M5-2-COF
COF-K1		 9024100000
15-1004
09-1165
08-1026
AC1031
AC1032
AC1035
AC1052		 9024800000
ECCN: EAR99
Country of origin: USA
* Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.

  Descriptio Part No.
Hook G1028
Extension Rod G1024
Cone G1026
Chisel G1025
V-Groove G1027
Flat G1029

Swivel adapter
Swiveling action provides proper sample alignment in pull testing applications
Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation.
Mount to common test frames, load cells, and force gauges.

 ● Capacity:
  • 100 lbF [500 N]
 ● Weight:
  • 0.30 lb [0.14 kg]
 ● Shipping weight:
  • 1 lb [0.5 kg]
● Max. sample thickness:
  • 2.30 in [58.4 mm]
● HS code:
  • G1056, G1018-1: 9024800000
● ECCN
  • EAR99
● Country of origin:
  • USA

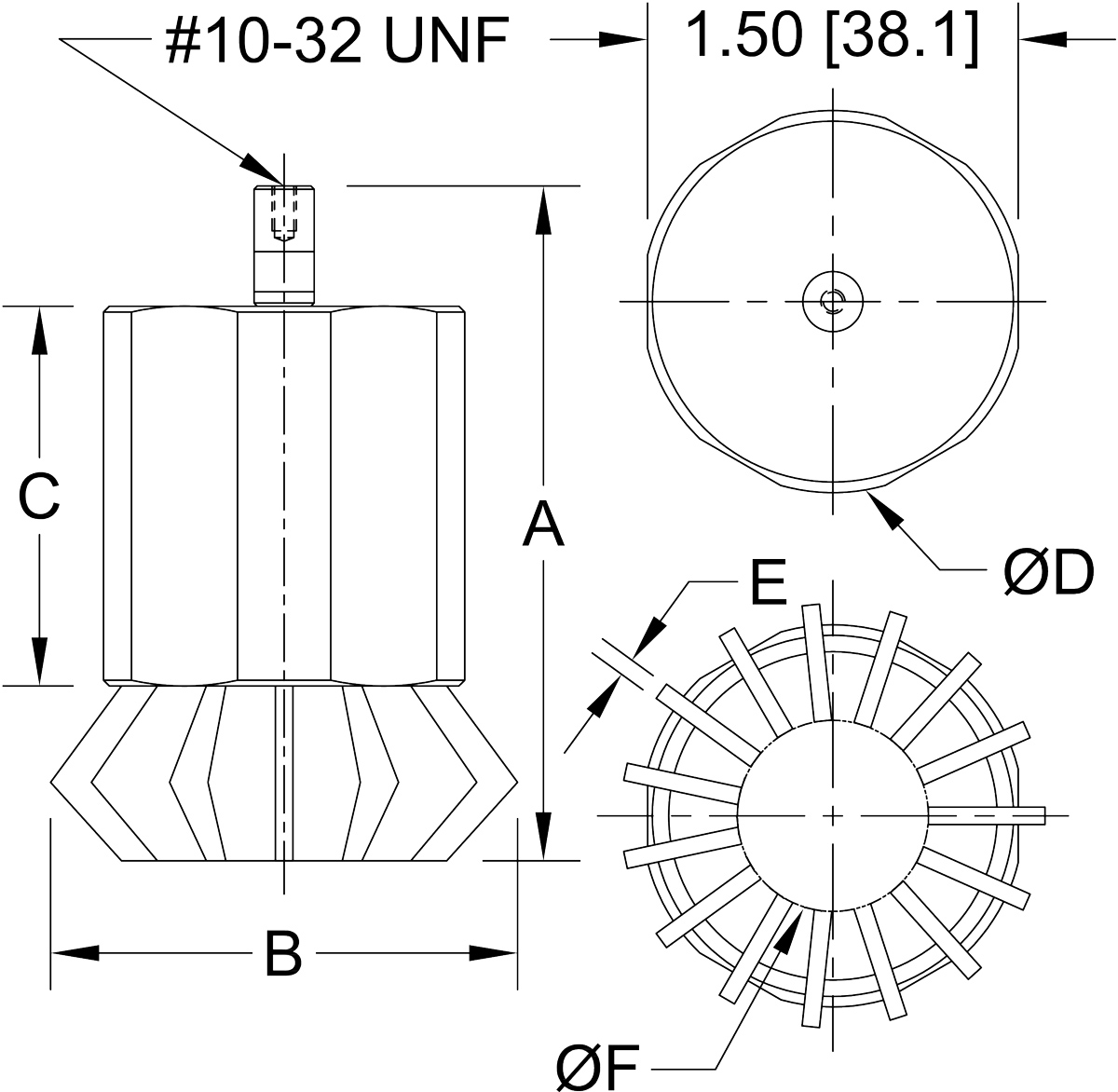

IN [MM]



A B C ØD E ØF
3.50
[88.9]		 2.30
[58.4] MAX		 1.63
[41.4]		 1.55
[39.4]		 0.075
[1.91]		 0.40 - 1.25
[10.2- 31.7]
