High Capacity Clevis Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1090 High Capacity Clevis Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1090 High Capacity Clevis Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1090

High Capacity Clevis Grip (Tensile / Pull) ยี่ห้อ Mark-10 รุ่น G1090
หมวดหมู่สินค้า: Tensile / Pull
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

20 มีนาคม 2566

ผู้ชม 370 ผู้ชม



Grips & Attachments
Mark-10 grips and attachments are integral components of testing systems, designed for a wide range of tension, compression, and torque applications. These grips and attachments are able to mount to Mark-10 force gauges, torque gauges, sensors, and test stands. Eye end adapters may be used with some gauges and sensors for quick-change convenience and compatibility with third party equipment.
 Data Sheet - All Grips
High Capacity Clevis Grip (G1090)
This grip is designed for various pull testing applications, including extension spring testing, chain link break force testing, and other applications. A spring loaded pin with ball plunger locks into place, for added safety during testing.

Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.

 ● 100 lbF [500 N] capacity
 ● Spring-loaded lever
 ● Serrated steel jaws
 ● Swiveling mounting attachment
 ● Thru slot for samples of unlimited width
Capacity x Resolution: 5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF,
1000 x 0.2 gF, 10 x 0.002 N
Accuracy: ±0.1% of full scale
Sampling rate: 7,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Outputs: USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ± 1 VDC, ± 0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 1 lb [0.5 kg]
Shipping weight: 3 lb [1.4 kg]
Included items: Carrying case with hook, chisel, cone, V-groove, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR®Lite software, MESUR®gauge and MESUR®gauge Plus 90-day trial, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
M5-2-COF
COF-K1		 9024100000
15-1004
09-1165
08-1026
AC1031
AC1032
AC1035
AC1052		 9024800000
ECCN: EAR99
Country of origin: USA
* Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.

  Descriptio Part No.
Hook G1028
Extension Rod G1024
Cone G1026
Chisel G1025
V-Groove G1027
Flat G1029

Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation.
Mount to common test frames, load cells, and force gauges.

 ● Capacity:
  • 2,000 lbF [9 kN]
 ● Weight:
  • 0.78 lb [0.4 kg]
 ● Shipping weight:
  • 2 lb [0.9 kg]
● HS code:
  • 9024800000
● ECCN
  • EAR99
● Country of origin:
  • USA

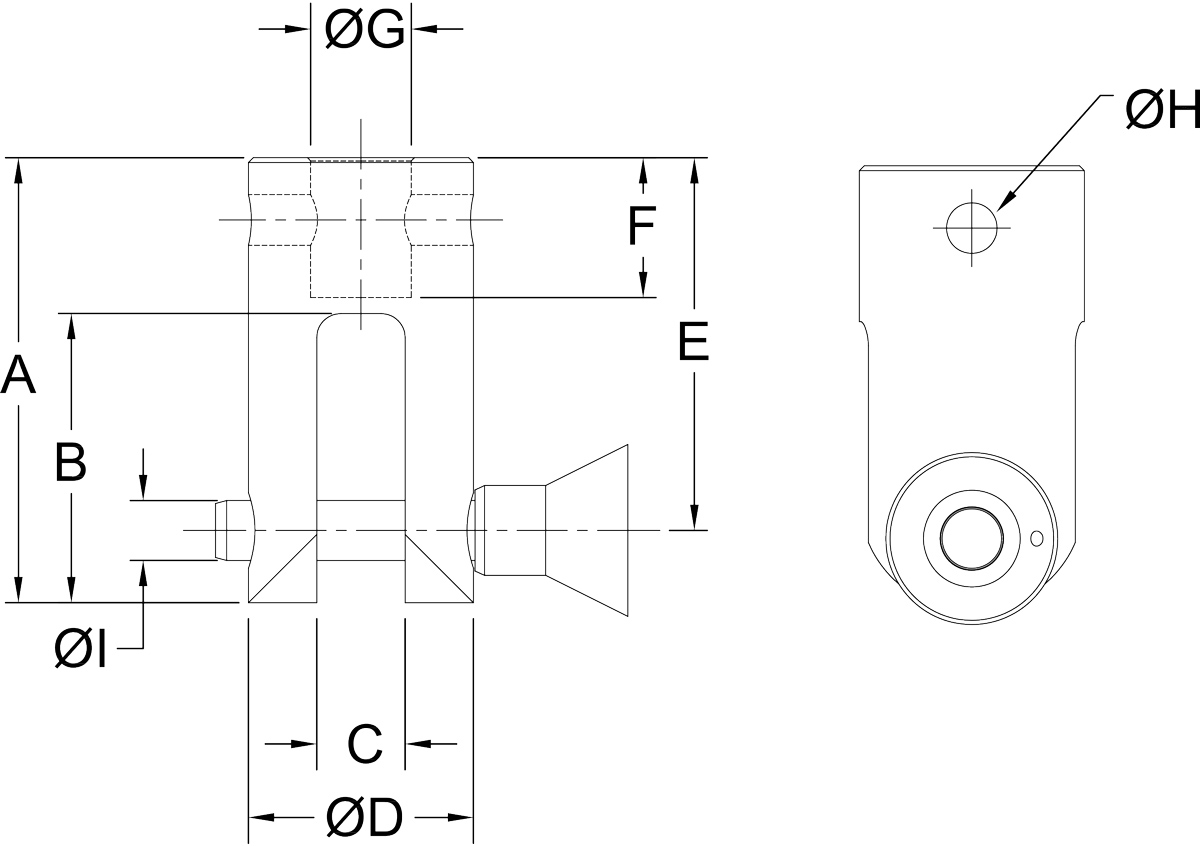

IN [MM]
A B C ØD E F ØG ØH ØI
2.77
[70.4]		 1.80
[45.7]		 0.55
[14.0]		 1.40
[35.6]		 2.32
[58.9]		 0.87
[22.1]		 0.63
[15.9]		 0.32
[8.0]		 0.38
[9.7]
