เครื่องทดสอบแรงดึงลวด เครื่องวัดแรงตึงเส้นลวด เครื่องวัดและเกจเช็คแรงตึง แบบคันโยก (Wire Pull Testers) ยี่ห้อ Mark-10 รุ่น WT3-201

เครื่องทดสอบแรงดึงลวด เครื่องวัดแรงตึงเส้นลวด เครื่องวัดและเกจเช็คแรงตึง แบบคันโยก (Wire Pull Testers) ยี่ห้อ Mark-10 รุ่น WT3-201
หมวดหมู่สินค้า: Wire Pull Testers
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

23 ตุลาคม 2568

ผู้ชม 651 ผู้ชม



    สินค้ายกเลิกการผลิต
     Discontinued product.



Wire Crimp Pull Testers
Mark-10 wire crimp pull testers measure the pull-off force of crimped terminals, up to 200 lbF (1 kN) for wire diamaters up to 0.25" (6.4 mm). Select from the economical and quick-action WT3-201 benchtop tester, motorized WT3-201M, or portable hand-operated Series R06. All testers capture peak forces and allow the user to output to a PC via USB.

For higher forces and larger sample sizes, consider a test stand-based system, consisting of choice of test stand, force gauge, and grips
Wire Crimp Pull Tester WT3-201
The WT3-201 wire crimp pull tester is designed to measure the pull-off force of crimped wire and tube terminations. An ergonomic lever allows for easy application of up to 200 lbF (1,000 N) of crimp pull force. Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm]). The tester accommodates most insulation types. Samples can be sent to Mark-10 for evaluation prior to purchase.

A large, backlit graphic LCD displays easy-to-read values, including real-time force, peak force, programmable pass/fail limits, units of measurement, and more. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. An analog load bar is shown on the display for graphical representation of applied force.

On-board data storage for up to 1,000 readings is included, as are statistical calculations and output to a PC. Unique automatic output / data storage / zeroing upon sample break helps automate testing processes.

An optional ring terminal fixture may be used to secure ring terminations, and an optional carrying case makes transportation simple and safe.

 ● Measures real-time and peak force values
 ● Ergonomic lever operation produces 200 lbF [1,000 N]
 ● USB, RS-232, Mitutoyo (Digimatic), and analog outputs
 ● Automatic output / data storage / zeroing upon sample break helps automate testing processes
 ● 1,000-point data memory with statistics and outputs
 ● Password protection prevents unauthorized changes
 ● Programmable set point indicators and outputs for pass/ fail determination
 ● High-speed 7,000 Hz sampling rate accurately captures peak force values
 ● Configurable audio alarms and key tones
 ● Mounting holes for bench mounting

Capacity x Resolution: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy: ±0.2% of full scale
Wire gauge range*: AWG30 - AWG3*
Wire diameter range: 0.01 - 0.25 in [0.3 - 6.3 mm]
Minimum sample length: 6.5 in [165 mm], excluding termination
Maximum sample elongation: 1.15 in [29.2 mm]
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud. .
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 16.1 lb [7.3 kg]
Shipping weight: 22 lb [10 kg]
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
WT3-201,E,U,A 9024100000
CERT
15-1004
WT3002
WT3003
WT3004
AC1049
09-1163
09-1165
08-1026
AC1030
AC1031
AC1032
AC1035		 9024800000
ECCN: EAR99
Country of origin: USA
* Including insulation. To ensure the wire sample will fit into the WT3-201, measure the overall outside diameter of the insulated wire and check against the specified diameter range. Account for sample compressibility in making this determination.
num.
  ES10 ES20
Maximum Force 100 lbF [500 N]
Maximum Travel 9" [229 mm]
Loading Method Lever (can be placed in 3 positions for ease of operation) Top-mounted hand wheel
Travel Rate 1.050" [26.7 mm] / lever rev. 0.083" [2.1 mm] / wheel rev.
Weight 10 lb [4.5 kg]
Shipping weight 12 lb [5.4 kg]
Model No. HS Code ECCN Country of Origin
ES10
ES20		 9024900000 EAR99 USA
ES001
ES002
ES001NI
ES001NI-8MM
AC1060		 9024800000
num.
Accessory Sensor Model
FS05-012 - FS05-20 FS05-50 - FS05-100 FS05-200 - FS05-500

Extension Rod G1024 G1024 G1031

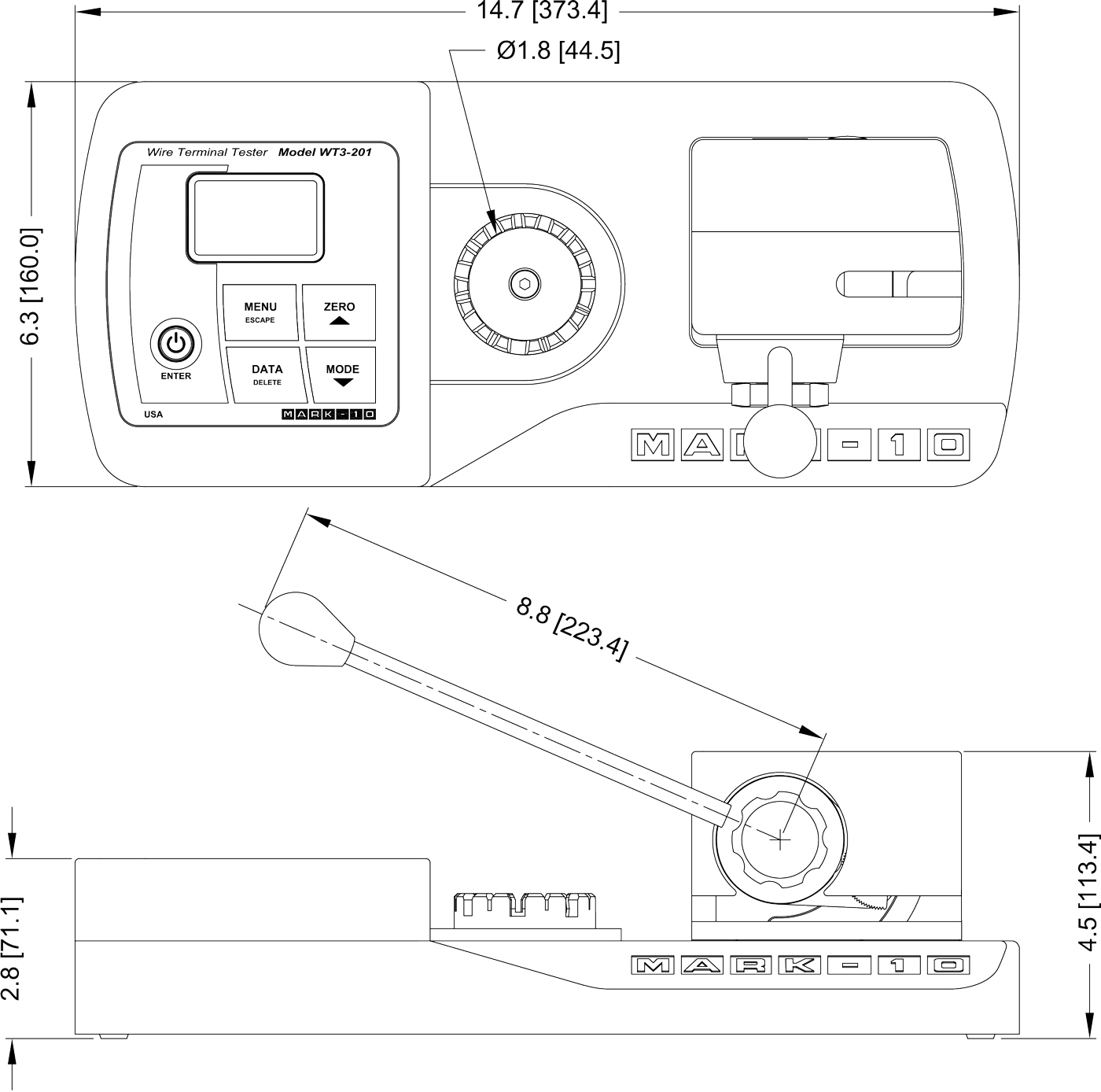

IN [MM]

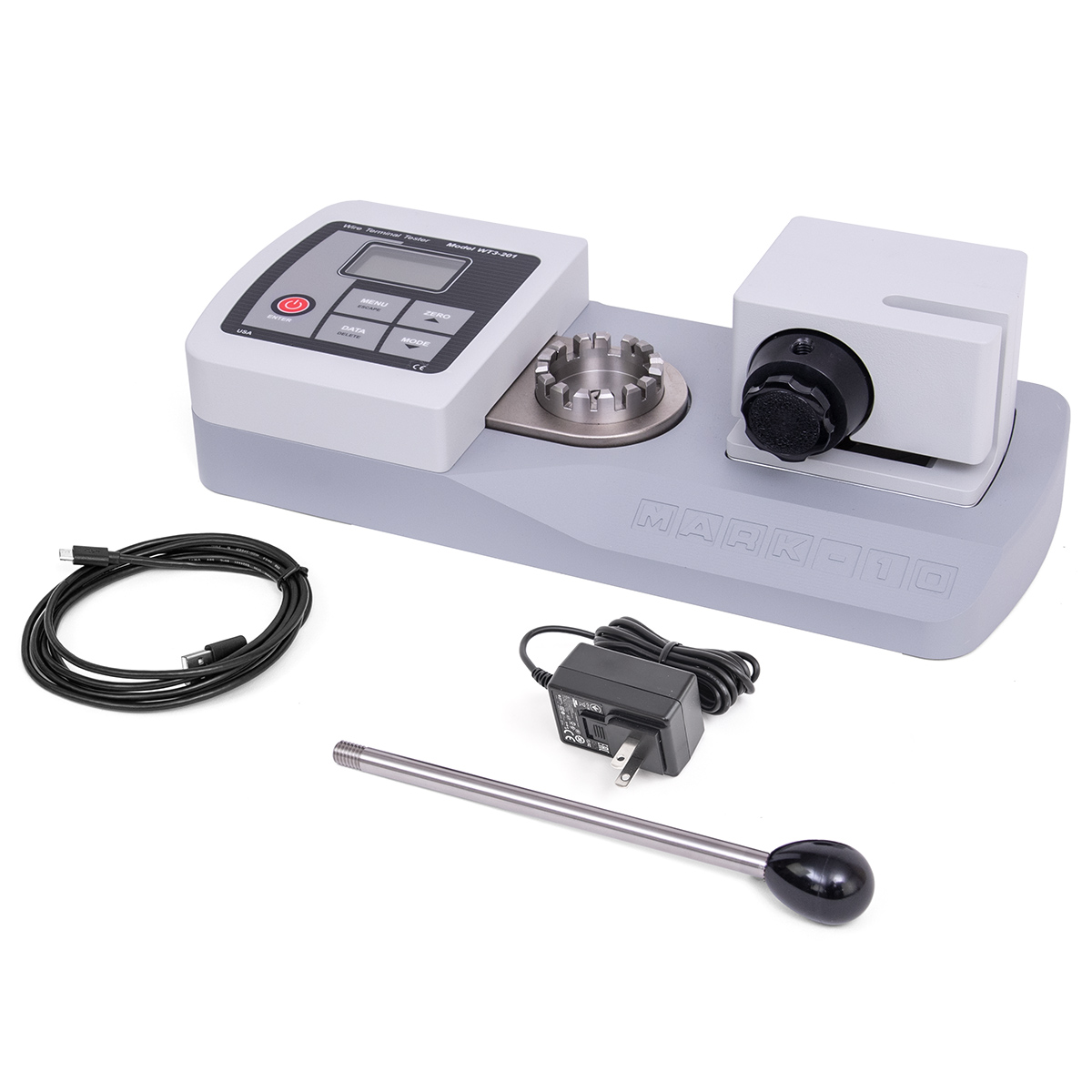

The WT3-201 Wire Crimp Pull Tester is shipped as shown at left, and includes the following accessories:

(1) Removable lever
(1) USB cable
(1) Battery
(1) AC adapter
(1) Certificate of calibration without data
num.

ES20

(1) Allen wrench set
(1) Hand wheel
(4) Thumb screw for force gauge

Ring terminal fixture (WT3002)
Multiple pin sizes are provided, from 1/8" to 3/8" [3.2 to 9.5 mm] dia.
Machinable blank terminal fixture (WT3003)
For unique sample shapes and sizes.
Carrying case (WT3004)
Provides storage space for the WT3-201 tester, optional ring terminal fixture, AC adapter, USB cable, and accessories.
MESUR®gauge software (15-1004)
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
Certificate of calibration with data (CERT)
Calibration kit (AC1049)

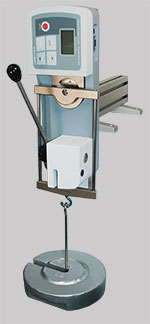

Complete set of brackets and hardware for calibration of a wire pull tester. Weights not available from Mark-10.
