Ergonomics Force Gauges

These force gauges are ideal for strength assessment, ergonomic studies, and workplace design. Available in capacities of 100 lbF (500 N), 200 lbF (1,000 N), and 500 lbF (2,500 N).

Series EK3 basic kits offer everyday functionality with a selection of commonly used attachments.

The Series E family offers increased force gauge performance, with unique Click-Lock^® accessory mounting technology. Select a pre-configured kit, or pick and choose a gauge and accessories suited to your unique applications.

Series EKM5 myometer kits are designed for muscle strength assessments, and include a complete kit of accessories.

 Comparison chart

Advanced Ergonomics Kits Series E

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications.

Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

Attachments click and lock into place via innovative Click-Lock^® technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

● Measure real time and peak push and pull forces
● Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
● Click-Lock® accessory mounting technology
● USB data output
● High / low limit indicators, for pass / fail and minimum force testing
● Averaging mode calculates average force over a period of time
● 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR® Lite data collection software.
● Statistical calculations for saved data points

Accuracy:	±0.2% of full scale
Sampling rate:	7,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbF, ozF, gF, kgF, N, kN (depending on model, see below)
USB output:	Configurable up to 115,200 baud.
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Weight:	1.7 lb [0.8 kg]
Included items:	Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR^®Lite software, MESUR^®gauge 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
	EKE-100-1,-2 EKE-200-1,-2 EKE-500-1,-2 ME-100 ME-200 ME-500	9024100000
	15-1004 E1000 - E1013	9024800000
ECCN:	EAR99
Country of origin:	USA



Model	Description	Advanced Kit¹ EKE-100-1 EKE-200-1 EKE-500-1	Professional Kit¹ EKE-100-2 EKE-200-2 EKE-500-2
ME-100 ME-200 ME-500	Ergonomics force gauge		
E1002	Padded attachment, square		
E1003	Padded attachment, rectangular		
E1004	Padded attachment, curved		
E1005	Padded attachment, circular		
E1006	Hook		
E1007	Chain / hook assembly		
E1008	Single handle grip		
E1009	Double handle grip		
E1010	Pistol grip		
E1011	Grip adapter, 5/16-18F
E1012	Looped cable²
E1013	Myometer kit³
E1000	Carrying case, small	
E1001	Carrying case, large		

Capacity x Resolution
Model	lbF	ozF	kgF	gF	N	kN
ME-100	100 x 0.05	1600 x 1	50 x 0.02	50000 x 20	500 x 0.2	-
ME-200	200 x 0.05	3200 x 1	100 x 0.02	-	1000 x 0.2	1 x 0.0002
ME-500	500 x 0.1	8000 x 2	250 x 0.2	-	2500 x 0.5	2.5 x 0.0005



● Series 3 digital force gauge

±0.3% accuracy
USB output
Compact design, easy to hold
Measures in lbF, ozF, kgF, or N
Peak force capture for push and pull forces
Durable construction ensures longevity
Battery or AC operation

● MESUR® Lite software
Tabulates continuous or individual data points from the gauge. One-click export to Excel easily allows for further data manipulation.

● USB cable
For data output to a PC

● Double- and single-handles
Non-slip rubber handles for good grip and consistent test results.

● Padded attachments
Flat, curved, and square padded attachments mount directly to the force gauge for conducting musculoskeletal strength analysis.

● Snap hook
Features a snap clasp, for added safety. Swiveling action ensures proper alignment.

● Flat attachment
Round attachment for compression tests.

● Accessories
Series EK3 kits include a cushioned carrying case, AC adapter, battery, user's manual, and NIST-traceable certificate of calibration.

● NIST-traceable certificate of calibration without data

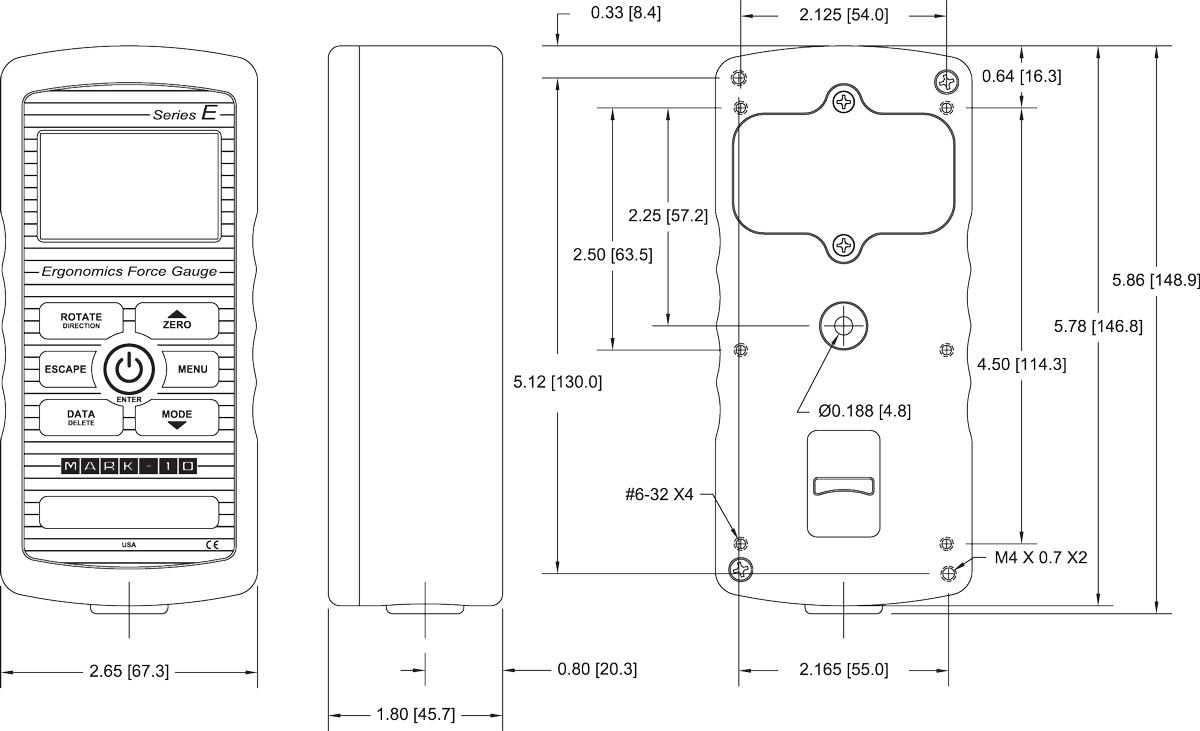

IN [MM]


