กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) ยี่ห้อ OPTIKA รุ่น B-510MET กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) ยี่ห้อ OPTIKA รุ่น B-510MET กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) ยี่ห้อ OPTIKA รุ่น B-510MET กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) ยี่ห้อ OPTIKA รุ่น B-510MET กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) ยี่ห้อ OPTIKA รุ่น B-510MET
หมวดหมู่สินค้า: Metallurgical Upright Microscope
กล้องจุลทรรศน์แบบแสงตกกระทบสำหรับงานวัสดุและโลหะวิทยา (Metallurgical Upright Microscope) แบบไบรท์ฟิลด์ แสงโพลาไรซ์ธรรมดา และการส่องสว่างแบบเฉียง (Oblique) บนไฟตกกระทบ พร้อมด้วยชุดส่องสว่างรุ่น X-LED
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp

แท็ก:

08 มกราคม 2567

ผู้ชม 1162 ผู้ชม

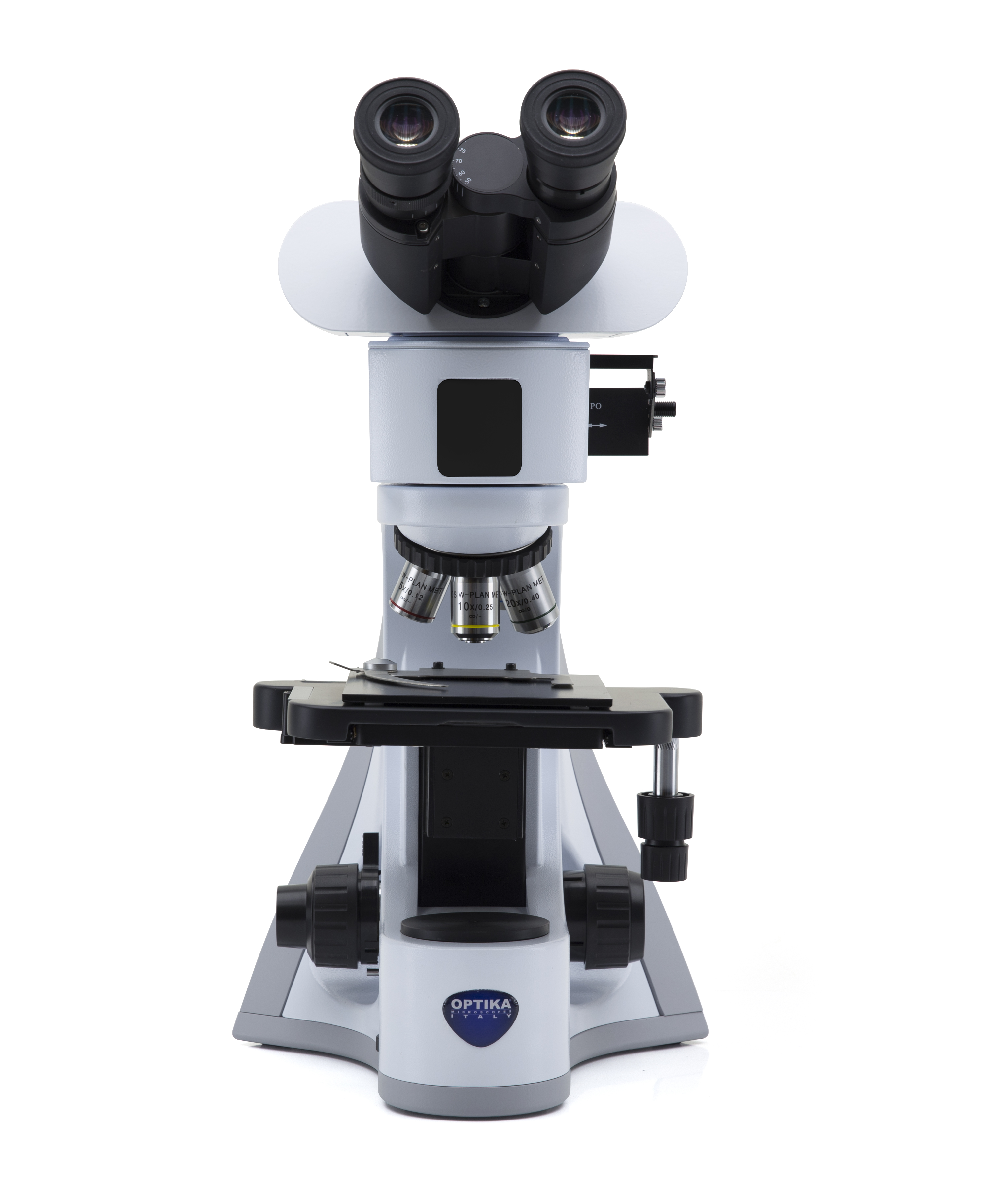

B-510MET
Observation mode: Brightfield, simple polarized light, oblique illumination on incident light.
Epi-illumination and filters: X-LED8 with white 8 W LED (6.300 K) with brightness control. With aperture and field diaphragms, and oblique illumination system. With polarizer and analyzer. Multi-plug 100-240Vac/6Vdc external power supply.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free):
– IOS W-PLAN MET 5x/0.12
– IOS W-PLAN MET 10x/0.25
– IOS W-PLAN MET 20x/0.40
– IOS W-PLAN MET 50x/0.75
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Related Literature :
