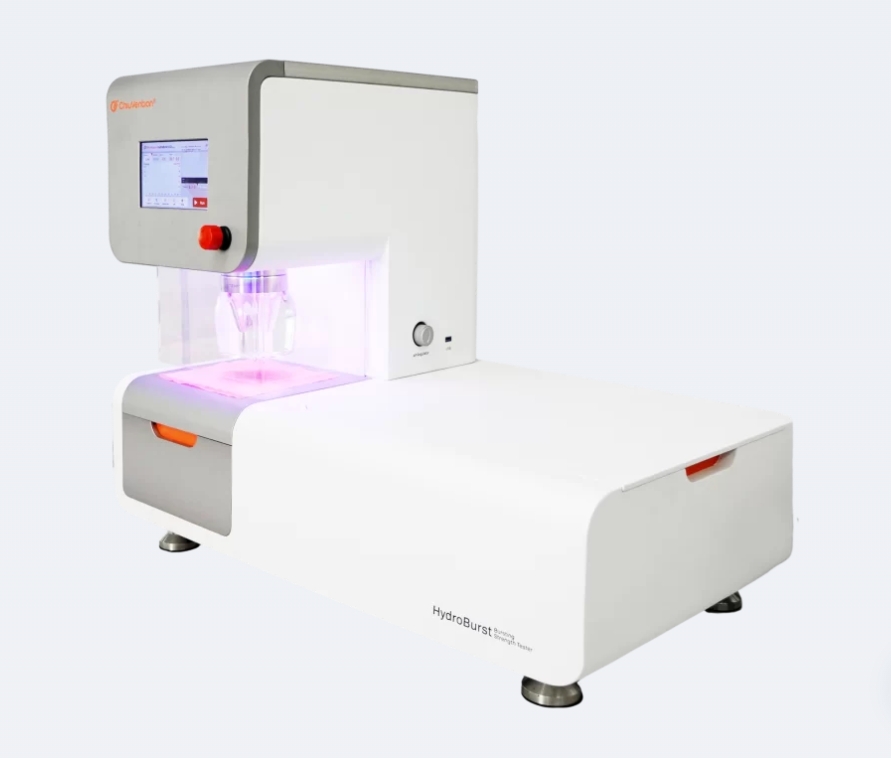

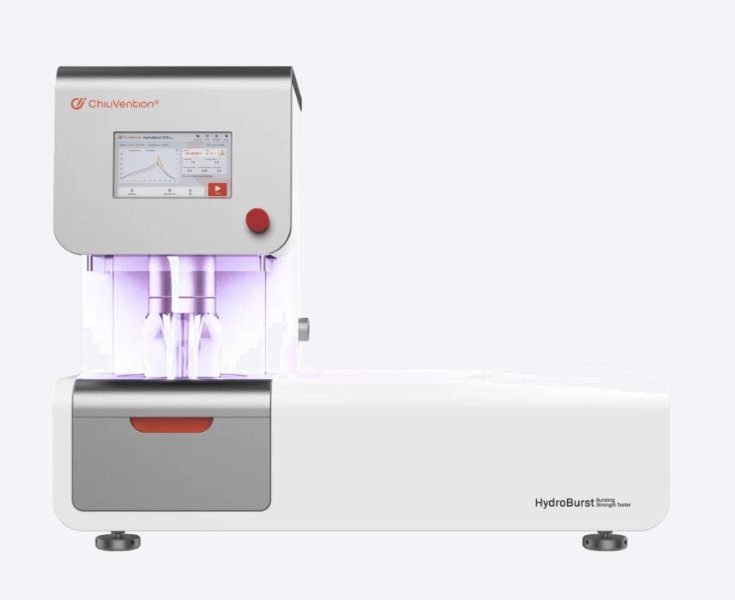

Specification of Hydraulic Bursting Strength Tester

• Model:  No.   1. CV.142.01 CV142  HydroBurst Bursting Strength Tester
• Testing mode: fixed-speed bursting, fixed-pressure bursting, fixed-expansion bursting, and fixed-time bursting
• Measurement range:

0-10 MPa ±1%    ( with test cup ≤ 10cm²)

0-3 MPa ±1%      ( with test cup = 50cm² )

0-1 MPa ±1%      ( with test cup = 100cm²)

• Testing rate: 50-500 ml/min
• Maximum expansion height:

30mm±1mm (with test cup of 7.3 cm² /7.55 cm² /10 cm²);

70mm±1mm (with test cup of 50cm² /100 cm² )

• Hydraulic medium:   7.HY.004  glycerin  500ml/1 pc

Test cup mode, Fixture mode, and related dimensions

• Test Cup 1（Standard）                      2.Z.CV.142.01    7.3cm²（Dia.30.5mm±0.2mm）
• Lower fixture base 1（Standard）      2.Z.CV.142.11     7.3cm²（Dia.30.5mm±0.2mm）
• Test Cup 5 (Optional)                          2.Z.CV.142.05     50cm²  （Dia. 79.8mm±0.2mm
• Lower fixture base 5（Optional）      2.Z.CV.142.15     50cm²  （Dia. 79.8mm±0.2mm）
• Test Cup 2 (Optional)                           2.Z.CV.142.02    7.55cm² （Dia. 31mm±0.2mm）
• Lower fixture base 2（Optional）        2.Z.CV.142.12   7.55cm² （Dia. 31mm±0.2mm）
• Test Cup 4 (Optional)                           2.Z.CV.142.04     10cm²  （Dia. 35.7mm±0.2mm）
• Lower fixture base 4（Optional）        2.Z.CV.142.14     10cm²  （Dia. 35.7mm±0.2mm）
• Test Cup 6(Optional)                          2.Z.CV.142.06      100cm²  （Dia. 113 mm±0.2mm）
• Lower fixture base 6（Optional）     2.Z.CV.142.16      100cm²   （Dia. 113 mm±0.2mm）
• Test diaphragm (optional)   4.M.020   Dia. 148 mm * 1.6 mm (10pcs/box)
• Operating environment: temperature 20°C ±5°C, humidity: 50%~70%.
• Installation conditions: air supply pressure of 5~8 bar (ensure the air is clean and dry).

Power:  220V 5A    50/60Hz. (Other voltages require an external transformer)

Weight:  130kg

Dimension:  830*500*660mm  （L*W*H）
