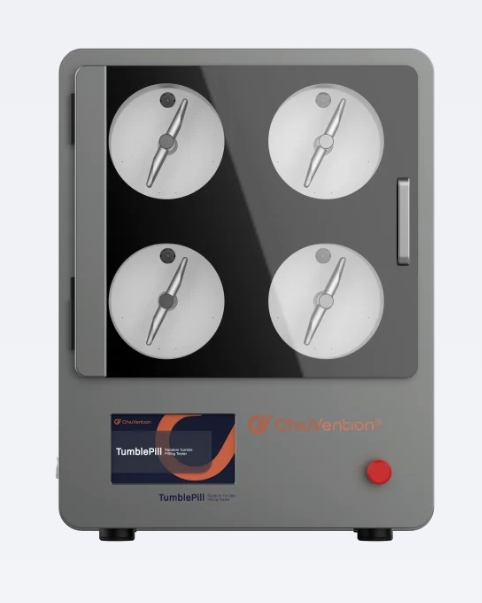

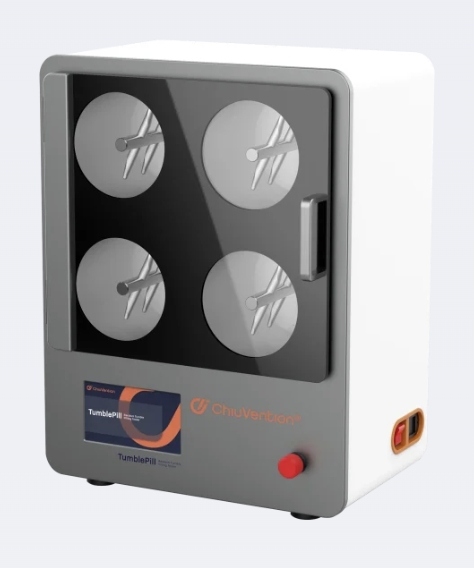

The Specification of TumblePill Random Tumble Pilling Tester

Number of test chambers: 4

Sample size: square  100×100 mm; or  round 100cm²

Test chamber specification: Diameter φ146±1mm, Depth 152.4±1mm

Impeller length: L=121mm

Impeller shaft diameter: φ12.7mm

Rotation speed: 1200r/min (speed adjustable)

    Standard Accessories & Consumables

Sampling board  1 pc    105 *105 mm

Gas pipe            1 pc   2m Φ8 mm

Leather belt       2 pcs

Impeller 1          4 set   Apply for ASTM, JIS

    Optional Accessories & Consumables

Impeller 2       1 set  Apply for JIS

Impeller 3       1 set  Apply for ISO, GB/T

Cork liner            pack of 50

Cotton sliver      1yds/pack

Pilling Standard Photograph  pack of 5

Dust collector   1 pc

Power               220 V   50 / 60 Hz. Other voltages require an external transformer

Weighs   about 70 kg

Dimension       560*360*620mm（L*W*H）
