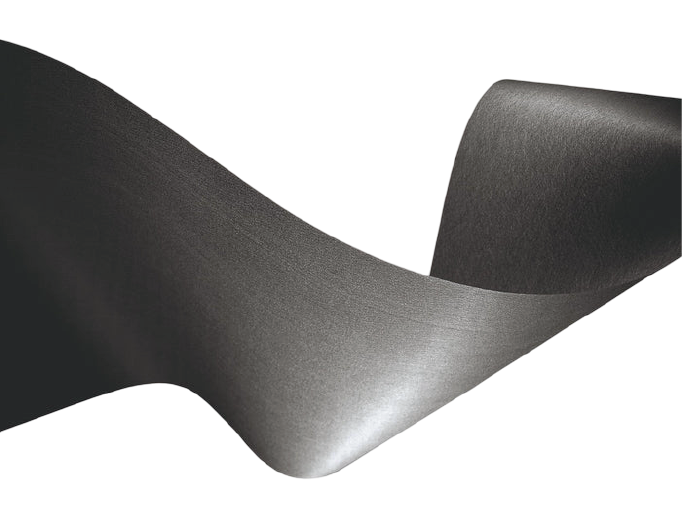

วัสดุชั้นแพร่ก๊าซ (GDL) สำหรับเซลล์เชื้อเพลิง (SGL CARBON) ยี่ห้อTHESIX

วัสดุชั้นแพร่ก๊าซ (GDL) สำหรับเซลล์เชื้อเพลิง (SGL CARBON) ยี่ห้อTHESIX
หมวดหมู่สินค้า: Fuel Cell Components
วัสดุและชิ้นส่วนคาร์บอนประสิทธิภาพสูงจากประเทศเยอรมนี โดยมีผลิตภัณฑ์สำหรับอุตสาหกรรมพลังงาน รวมถึง Gas Diffusion Layer (GDL) ที่ใช้ใน Fuel Cell และ Electrolyzer
ราคา 0.00 บาท

แท็ก:

02 กันยายน 2569

ผู้ชม 7 ผู้ชม

SGL CARBON

22BB - SGL CARBON
Description
Sigracet 22 BB is a high-performance non-woven carbon fiber paper featuring an integrated Microporous Layer (MPL) and a 5 wt% PTFE hydrophobic treatment. With a total thickness of approximately 215 µm, this Gas Diffusion Layer (GDL) offers exceptional durability and optimized water management for Proton Exchange Membrane Fuel Cells (PEMFCs).The PTFE coating imparts strong water-repellent properties, effectively preventing liquid water accumulation and flooding within the porous carbon structure. This ensures stable gas permeability and consistent electrochemical performance even under dynamic humidity and temperature conditions.The Sigracet 22 Series has been specifically engineered to deliver both manufacturing consistency and high electrochemical efficiency. It offers:


  • Outstanding inter-lot and intra-lot uniformity, with variability controlled within ±10% (2 sigma)
  • Excellent surface planarity, enhancing contact quality and reducing compression issues
  • Minimal defect rate, ensuring roll-to-roll reliability in large-scale production
  • Consistent performance across a wide range of operating environments

Sigracet 22 BB provides a robust and cost-effective alternative to conventional woven carbon paper GDLs and diffusion media, making it a preferred choice for PEM fuel cell stacks and PEM electrolyzer systems in both automotive and stationary applications.

22 - BB
Material Properties Value Units
Thickness 215 µm
Area Weight 70 gm2
TP Gas Permeability 1.2 Gurley sec
TP Gas Permeability [1 Mpa] 0.47 10-12m2
TP area-specific resistance [1 Mpa] <10 mΩcm2
Thermal Conductivity 0.30 Wm-1K-1
39BC - SGL CARBON
Description
Sigracet 39 BC is a high-quality non-woven carbon fiber paper gas diffusion medium, featuring an integrated Microporous Layer (MPL) and a 5 wt% PTFE hydrophobic treatment. With a total thickness of approximately 325 µm, it combines excellent mechanical stability, gas permeability, and water management characteristics—making it an ideal choice for advanced Proton Exchange Membrane Fuel Cell (PEMFC) applications.The PTFE coating provides strong hydrophobic properties, effectively preventing flooding within the porous carbon structure. This ensures consistent reactant distribution and stable fuel cell performance, even under varying humidity and temperature conditions.Developed as part of the Sigracet 39 Series, this GDL is designed for both production reliability and superior electrochemical performance. Its key advantages include:


  • Outstanding inter-lot and intra-lot uniformity, with variability maintained within ±10% (2 sigma)
  • Enhanced surface flatness, ensuring optimal contact and compression behavior
  • Significantly reduced defect rates, delivering high consistency in roll-to-roll production
  • Reliable performance under diverse and demanding operating conditions

Sigracet 39 BC offers a cost-effective and robust alternative to conventional woven carbon paper GDL materials—trusted by stack developers seeking both performance stability and manufacturing consistency.

38BC - SGL CARBON
Description
Sigracet 38 BC is a durable non-woven carbon fiber paper featuring an integrated Microporous Layer (MPL) and a 5 wt% PTFE hydrophobic treatment. With a total thickness of approximately 325 µm, it provides excellent structural integrity and water management characteristics, making it a reliable Gas Diffusion Layer (GDL) solution for demanding fuel cell applications.The PTFE treatment enhances water repellency, helping to prevent flooding in the porous carbon substrate and maintaining consistent gas diffusion and current distribution throughout the fuel cell stack. This ensures long-term operational stability even under variable humidity and load conditions.Developed as part of the Sigracet 38 Series, this material is engineered for superior manufacturing consistency and performance reliability. Key advantages include:

  • Excellent inter-lot and intra-lot uniformity, with variability controlled within ±10% (2 sigma)
  • Enhanced surface flatness, improving mechanical contact and compression behavior
  • Reduced defect rates during production, ensuring consistent roll quality
  • Stable performance across a wide range of environmental and operational conditions

Sigracet 38 BC represents a cost-effective, high-performance alternative to conventional woven carbon paper GDL materials, offering a robust solution for fuel cell stack developers seeking reliability and scalability.

28BC - SGL CARBON
Description
Sigracet 28 BC is a premium non-woven carbon fiber paper that incorporates a Microporous Layer (MPL) and a 5 wt% PTFE hydrophobic treatment. With a total thickness of approximately 235 µm, it offers a balanced combination of mechanical strength, electrical conductivity, and superior water management for Proton Exchange Membrane Fuel Cells (PEMFCs).The PTFE treatment ensures excellent water-repellent characteristics, preventing flooding within the highly porous carbon structure and maintaining optimal gas diffusion. This hydrophobic behavior enhances durability and contributes to consistent cell performance across varying humidity and load conditions.Designed for both robustness and reliability, the Sigracet 28 Series delivers enhanced production consistency and performance stability. Developers and system integrators benefit from:

  • Exceptional inter-lot and intra-lot uniformity, maintaining variability within ±10% (2 sigma)
  • Improved surface flatness, ensuring uniform compression and electrical contact
  • Significantly reduced defect frequency during roll-to-roll manufacturing
  • Reliable operation under diverse environmental and operating conditions

 Sigracet 28 BC serves as a cost-effective, high-quality alternative to traditional woven carbon paper Gas Diffusion Layers (GDLs). It is particularly well-suited for PEM fuel cell systems in both stationary and automotive applications.

28 - BC
Material Properties Material Properties Units
Thickness 235 µm
Area Weight 105 gm2
TP Gas Permeability 4.5 Gurley sec
TP Gas Permeability [1 Mpa] 0.10 10-12m2
TP area-specific resistance [1 Mpa] <11 mΩcm2
Thermal Conductivity 0.38 mΩcm2
