หมวดหมู่สินค้า: Fuel Cell Stack
ไฮโดรเจนและอากาศ เป็นสารตั้งต้น และเปลี่ยนพลังงานจากไฮโดรเจนเป็นไฟฟ้า โดยเป็นระบบขนาดกะทัดรัด น้ำหนักเบา และใช้ พัดลมระบายความร้อนด้วยอากาศ จึงไม่ต้องใช้ระบบหล่อเย็นด้วยน้ำที่ซับซ้อน
ราคา 0.00 บาท
31 สิงหาคม 2569
ผู้ชม 10 ผู้ชม

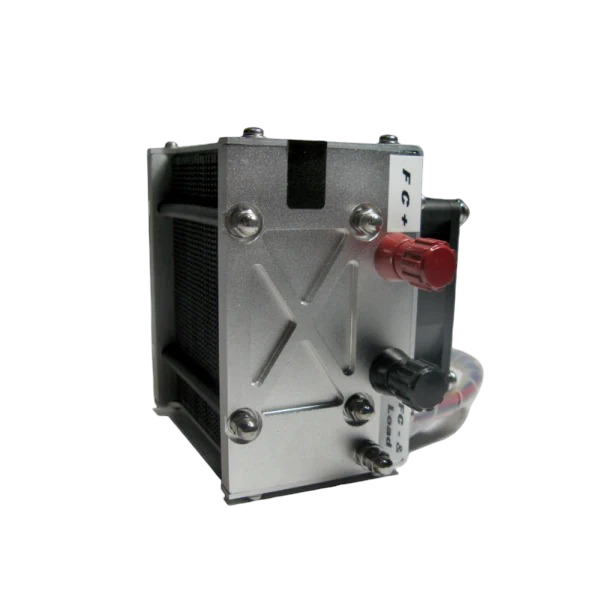

H-100 Horizon Fuel Cell
DescriptionHorizon’s H-100 PEM Fuel Cell System is a very light and compact system. It is applicable for various small projects with its 100 Watt air fed / air cooled, hydrogen fuel cell. The biggest advance of H-100 fuel cell is being air cooled; meaning that there is no need for water cooling systems with complex structures.Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.
- Connections/Tubing
- Electronic valves
- Electronic control box
- 100W stack with blower
- Fuel Cell ON/OFF switch
- SCU ON/OFF switch
Make contact with our team to explore accessories, new D/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.
Technical Details
| Number of Cells | 20 |
| Rated Power | 100W |
| Rated Performance | 12V @ 8.3A |
| Hydrogen Supply Valve Voltage | 12V |
| Purging Valve Voltage | 12V |
| Blower Voltage | 12V |
| Reactants | Hydrogen and Air |
| Ambient Temperature | 5 – 30 C; (41 – 86 F;) |
| Max Stack Temperature | 65 C (149 F) |
| Hydrogen Pressure | 0.45 – 0.55 Bar |
| Humidification | Self-humidified |
| Cooling | Air (integrated cooling fan) |
| Controller Weight | 400g |
| Stack Weight (with Fan & Casing) | 1290g ± 30g |
| Hydrogen Flow Rate at Max Output | 1.3 L/min |
| Stack Size | 118 x 104 x 94mm (4.6″ x 4.1″ x 3.7″) |
| Hydrogen Purity Requirement | ≥ 99.995% (dry H2) |
| Start up time | ≤ 30s (ambient temperature) |
| Efficiency of System | 40% at 12V |
| Low Voltage Protection | 20V |
| Over Current Protection | 12A |
| Over Temperature Protection | 65 C |
| External Power Supply | 13V (±1V), 5A |
H-60 Horizon Fuel Cell
DescriptionHorizon’s H-60 PEM Fuel Cell System is a very light and compact system. It is applicable for various small projects with its 60 Watt air fed / air cooled, hydrogen fuel cell. The biggest advance of H-60 fuel cell is being air cooled; meaning that there is no need for water cooling systems with complex structures.Example projects are: Recharging for cell phone, power for a small RC car or boat, or just an economical way to begin experimenting with hydrogen fuel cells and their use and operation.Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.
- Connections/Tubing
- Electronic valves
- Electronic control box
- 60W stack with blower
- Fuel Cell ON/OFF switch
- SCU ON/OFF switch
Make contact with our team to explore accessories, new DC/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.
Technical Details
| Number of Cells | 20 |
| Rated Power | 60W |
| Rated Performance | 12V @ 5A |
| Purging Valve Voltage | 12V |
| Blower Voltage | 12V |
| Reactants | Hydrogen and Air |
| Ambient Temperature | 5 – 30 C; (41 – 86 F;) |
| Max Stack Temperature | 65C (149F) |
| Hydrogen Pressure | 0.45 – 0.55 Bar |
| Humidification | Self-humidified |
| Cooling | Air (integrated cooling fan) |
| Controller Weight | 400g (.88lbs) |
| Stack Weight (with Fan & Casing) | 900g (1.98lbs) |
| Hydrogen Flow Rate at Max Output | 840mL/min |
| Stack Size | 9.4cm x 8.4cm x 8.5cm (3.7in x 3.3in x 3.3in) |
| Hydrogen Purity Requirement | ≥ 99.995% (dry H2) |
| Start up time | ≤ 30s (ambient temperature) |
| Efficiency of System | 40% at 12V |
