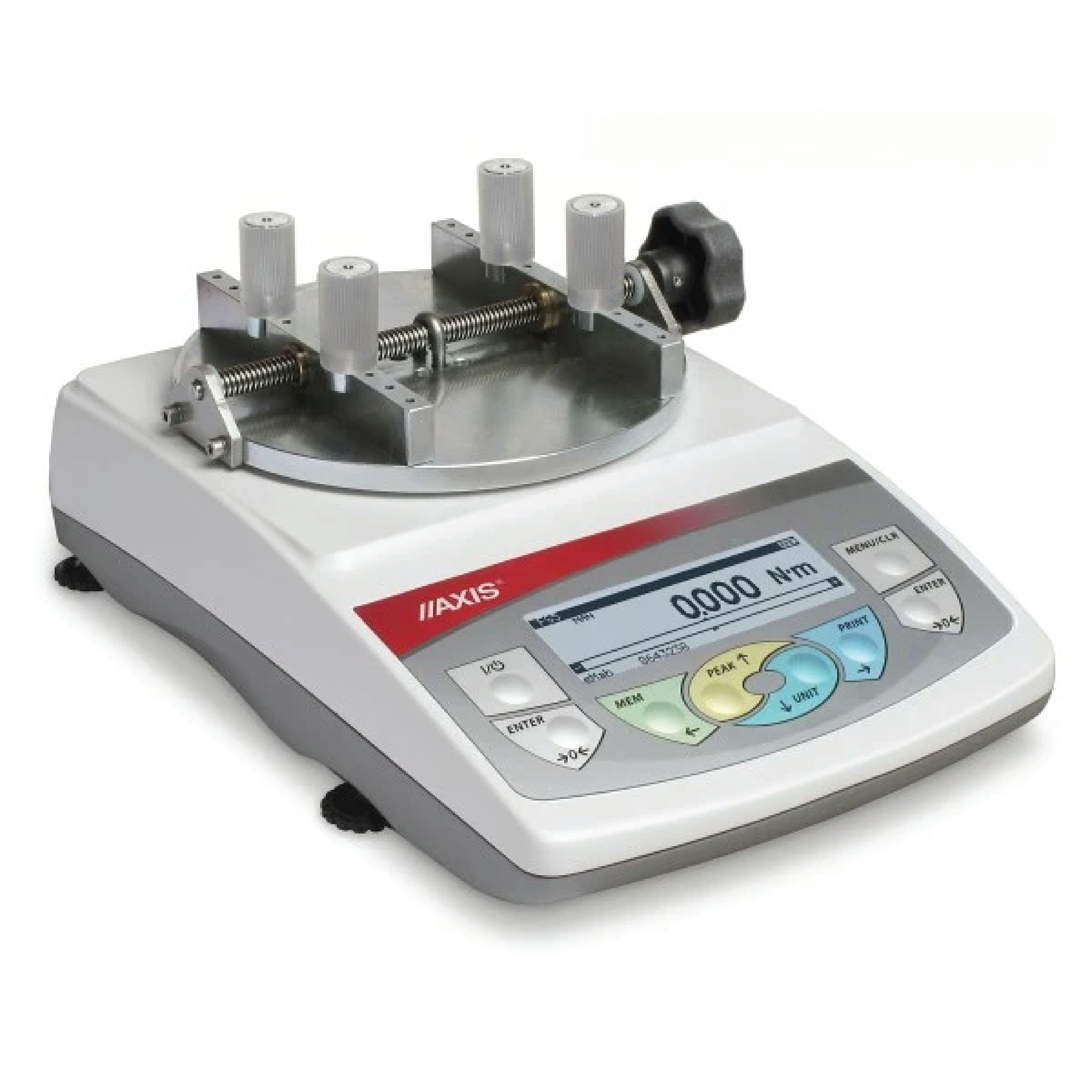

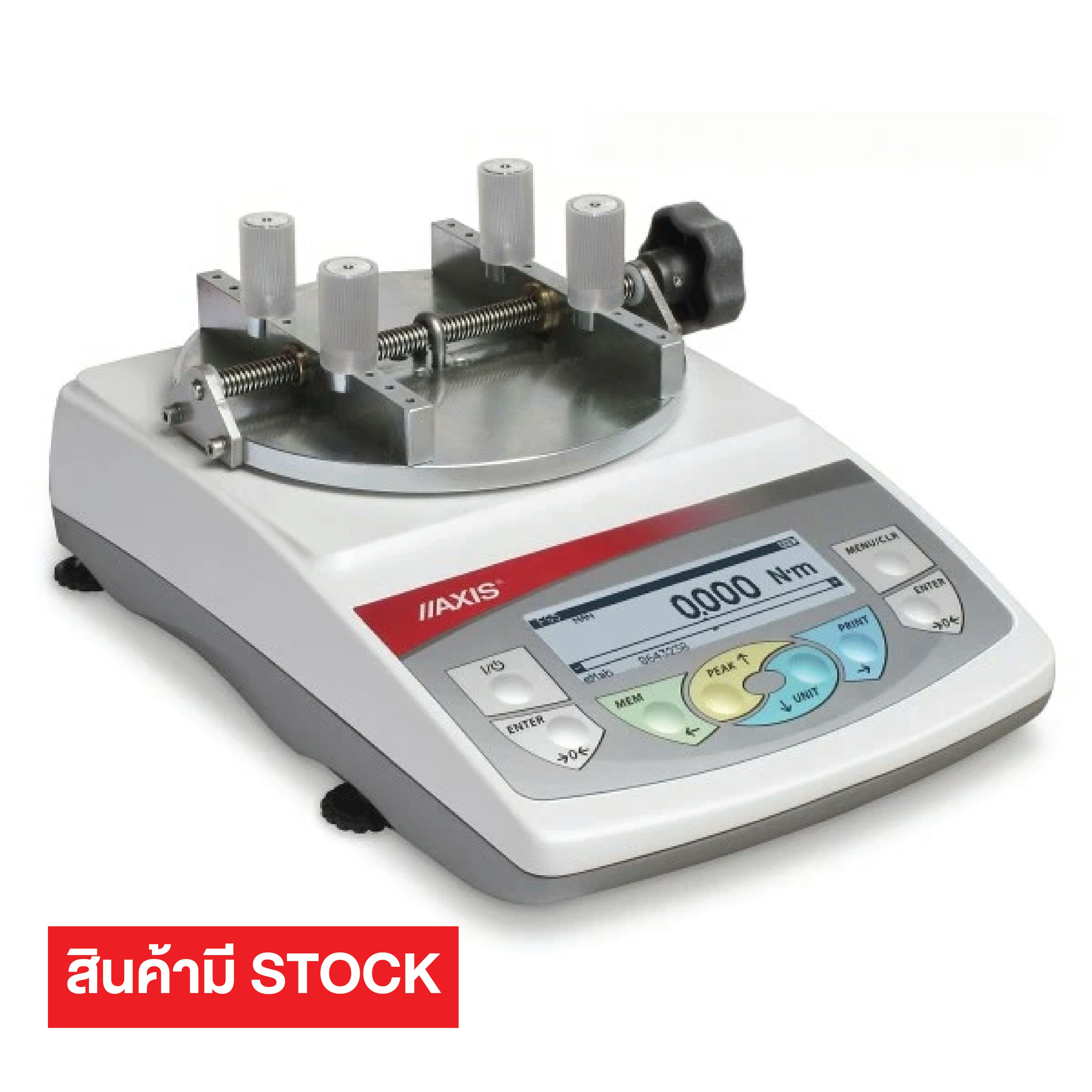

เครื่องทดสอบแรงบิด (Torque Tester / Torque Gauge) ยี่ห้อAXIS รุ่นFSA2
หมวดหมู่สินค้า: Ex-Stock Product
เครื่องทดสอบแรงบิดสำหรับวัดแรงบิดที่ใช้ในการ เปิด–ปิดฝาขวด ฝาโหล ภาชนะ หรือบรรจุภัณฑ์ต่าง ๆ โดยสามารถวัดแรงบิดได้ทั้งทิศทางตามเข็มและทวนเข็มนาฬิกา
ราคา 0.00 บาท

แท็ก:

17 สิงหาคม 2569

ผู้ชม 10 ผู้ชม

FSA2
Cap torque testers FSA series are designed for measuring torque during opening jar, bottles etc..Tester is equipped with a wide range clamp to measure variety of objects. Measurement processor enables to register maximal force torque needed for example to open a jar.Torque measurement can be realized in both directions, measurement time course registration and graph is possible. Clamp has a solid, universal construction that enables adaptation and expansion. Thus FSA can be used in complex measurement systems.
Product Details

Capacity (Max)
2Nm
Reading unit (d)
0,001Nm
Interfaces
RS232C, USB, microSD slot options: transoptor out (thr function)
Working temperature
0 ÷ +40°C
Dimensions
345x236x160mm
Power supply
supply ~230V 50Hz / 12V; 1,2A ; accumulator supply 4xAA
Accuracy
±0,5% F.S.
Maximal overload
50% measurement range
Balance weight
5,1kg
Sample diameter range
Ø20 ÷ 180mm
Maximal weight of sample
15kg
