หมวดหมู่สินค้า: Vibration Controllers
ตัวควบคุมการสั่นสะเทือน 900 Series ผสานอัลกอริทึมการควบคุมเครื่องเขย่า (Shaker Control) ที่มีชื่อเสียงของ Data Physics เข้ากับซอฟต์แวร์อินเทอร์เฟซที่ทันสมัยและฮาร์ดแวร์รุ่นใหม่ ระบบควบคุมการสั่นสะเทือน 900 Series สามารถตั้งค่าได้อย่างรวดเร็วเพื่อ ควบคุมเครื่อง Shaker ได้ทุกประเภท
ราคา 0.00 บาท
13 มีนาคม 2569
ผู้ชม 5 ผู้ชม

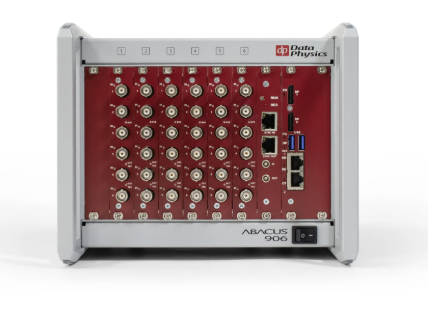

900 Series Vibration Controller Hardware
Designed for expandability, the Abacus 900 Series hardware platform is a distributed digital signal processing system. The Ethernet network architecture allows the systems to be used independently or combined to create larger systems (1,000+ channels).
| Satellite testing applications |
|
The Data Physics 900 Series Platform Brings Vibration Control and Signal Analysis Into the 21st Century
The 900 Series vibration controllers incorporate Data Physics’ renowned shaker control algorithms with a modern software interface and new hardware. The 900 Series vibration controller can quickly be set up to control any shaker – while the 900 series platform offers advanced features such as auto-aggregation of data from all test stands, custom Word-based reporting, unlimited expandability, concurrent data recording and signal analysis, intrinsic safety, and more. Get reliable results for sine sweep vibration tests, random vibration testing, SRS Analysis, and more.
 |
|
|
|
|
|
|
|
|
|
 |
Industry Leading Vibration Control Hardware
900 Series hardware couples high-quality measurement devices with processing power. Each 6-channel card includes multiple CPU cores, allowing the hardware itself to perform all processing for the measurement at hand. Constant improvements have allowed the hardware warranty to be extended from 1 year to 3 years with the purchase of any new 900 Series system.
|
Advantages of the 900 Series
Designed as a solution to challenges of high channel count testing, the 900 Series Platform delivers numerous benefits to users, including:
|
Data Accuracy
The 900 Series Platform provides the most accurate data in the industry, even with multi-chassis configurations.
|
Sample Rate Flexibility
The 900 Series Platform allows simultaneous recording and analysis of time history streams at different sample rates.
|
Test Data Security
All processing and control is done on the chassis. In case of disconnection from the host PC, users have the option to continue or end the test.
|
|
Channel Flexibility
The 900 Series Controller allows users to measure, control, and limit on any channel regardless of chassis.
|
High Responsiveness
The system is specifically designed and programmed for high channel counts without bottlenecks.
|
Test Data Security
All processing and control is done on the chassis. In case of disconnection from the host PC, users have the option to continue or end the test.
|
|
Processing Speed
Multi-chassis configurations don’t affect testing parameters and control capability.
|
Easy Setup and Operation
The software manages all IP addresses, making multi-chassis configuration set up a breeze.
|
|
|
Workflow Efficiency
Traditional post-processing analysis can be done in real-time during a vibration control test.
|
Hassle-Free Intelligent Licensing
The software manages all licenses and selects the appropriate licenses for the hardware you are connected to.
|
Applications
The 900 Series Vibration Controller offers solutions for a wide range of shaker control applications:
 |
|
|
|
|
|
|
|
|
| Random Vibration Control This application refers to a broad range of real-world vibration environments that products and structures actually experience in the field. | Mixed Mode Control Mixed-mode testing replicates environments with a combination of vibration modes, such as broadband and narrowband or sinusoidal. Such vibration environments are common; such as in an automobile, where there is random vibration from the road and sinusoidal vibration from the engine. |
| Sine Vibration Control Our vibration controllers are used to characterize the dynamics of test articles and test their durability. The sine vibration control module qualifies test articles and quantifies their resonances. | Sine Resonance Search and Dwell Control Resonance dwell is also referred to as low- or high- cycle fatigue testing. It provides a way of quantifying a product’s fatigue life. Resonance Search and Dwell uses the product’s own resonances to impart repeated cyclic loading, and is often run until the product fails. |
| Shock Vibration Control Classical shock tests a product’s ability to withstand high-acceleration events. Unlike a drop shock machine, classical shock testing has better accuracy and more repeatability. | Time History Replication The Time History Replication control allows the user to record or import historical data in the field and reproduce it on a shaker table. With the 900 Series, the same hardware can be used for both the time history recording and the shaker control, reducing the overhead of running a test. |
| SRS Synthesis Control SRS Control excites the structure with a complex shock event similar to those seen during explosive events or earthquakes. The SRS Synthesis Control module allows you to generate a waveform with a pre-defined SRS, and control that waveform on a shaker. | Multi-Shaker (MIMO) Vibration Control Whether you are testing large test articles in a single axis or exciting in multiple-axes, our MIMO controller enables multiple shakers to be controlled effectively and safely. Don’t fall for sub-par solutions which require “phase-matched” amplifiers, which rely on dubious phase-matching electronics, or which simply split a single drive signal to multiple actuators. The 900 Series MIMO Controller compensates for all differences in your shakers, amplifiers, and mechanical test setup and enables safe control of any multi-shaker configuration. |
