หมวดหมู่สินค้า: Test Sieves
ชุดอุปกรณ์เสริมสำหรับตะแกรงร่อน (Test Sieves) ที่ใช้ในงาน วิเคราะห์และแยกขนาดอนุภาคของวัสดุ โดยสามารถใช้ได้ทั้งการร่อนแบบ แห้ง (Dry Sieving) และ แบบเปียก (Wet Sieving) ในห้องปฏิบัติการหรืออุตสาหกรรมต่าง ๆ
*ราคาอาจมีการเปลี่ยนแปลงตามอัตราแลกเปลี่ยน โปรดสอบถาม Line : @siamintercorp
11 มีนาคม 2569
ผู้ชม 3 ผู้ชม
Accessories
HAVER & BOECKER provides a comprehensive range of accessories relating to all test sieves for dry- and wet-sieving in a short time.
 |

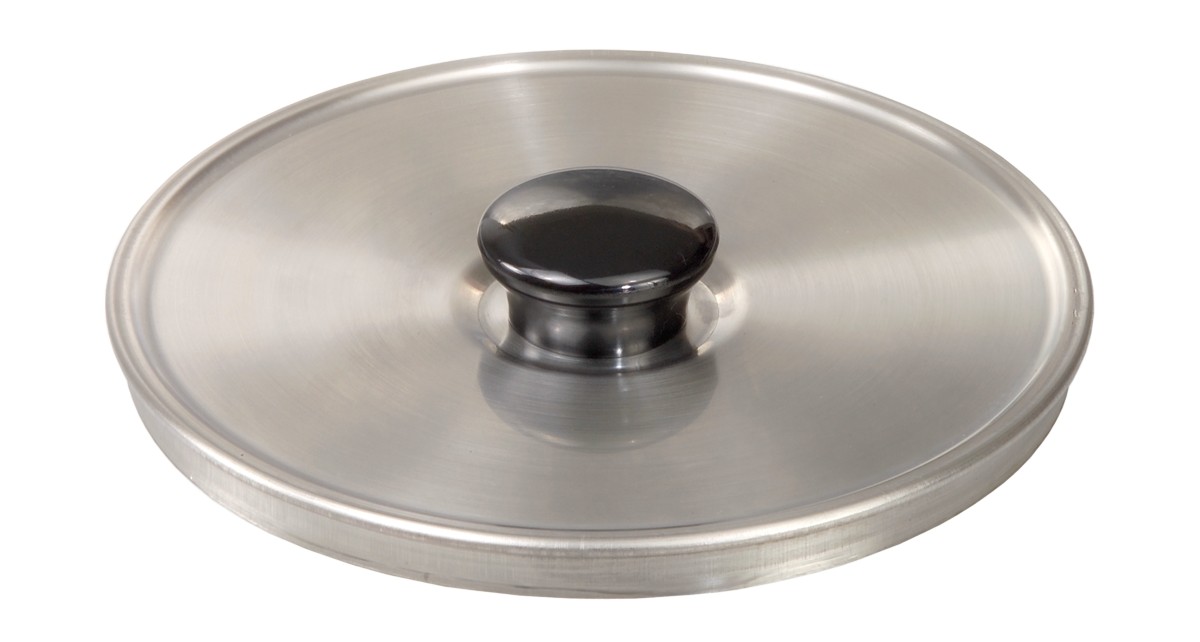

Sieve cover
Sieve covers defend stored test sieves from dirt and dust. They are also used for storing of classified material in single test sieves and sieve towers. We offer sieve covers for all test sieves made from stainless steel and beechwood.
|
 |
Sieve pan for dry and wet sievingSieve pan with discharge nozzle
Sieve pans collect the sieve underflow of bulk material. These are the fine particles. Please note that you need test sieves with discharge nozzle for wet sieving. Sieve pans with diameters up to 203 mm are equipped with bevel bottoms, larger sieve pans made from stainless steel with plane bottoms.
|
 |
Intermediate ring and intermediate panIntermediate ring
We offer intermediate rings and intermediate pans for all test sieves made from stainless steel. Intermediate rings are used together with less than three test sieves to increase the sieve tower as you need a specific height for HAVER Test Sieve Shakers. By using intermediate pans more than one sieve analysis can be simultaneous done with one test sieve shaker.
|
| Additional pasted seam |
|---|
| You prevent fixing of particles between woven wire cloth and tension ring of a test sieve by choosing an additional pasted seam above or below the woven wire cloth. |
| Sealing ring |
|---|
| Normally every HAVER Test Sieves with frames made from stainless steel are equipped with a PVC sealing ring, which is temperature-resistant until approx. 130°C. On demand we deliver your test sieve with a VITON sealing ring (heat resistance from -15°C up to +200°C). |
| Rubber balls and rubber cubes |
|---|
| Rubber balls and rubber cubes belong to products for sieving support. They are placed on the test sieve and clean the aperture sizes during the sieving process to speed it up. |
 |
Sieve holder
The sieve holder with its space-saving design can easily be fitted in many versions and enables up to five test sieves with diameter of 200 mm or 203 mm be stored in safety. Due to single labels you can identify the test sieve at a glance.
|
 |
HAVER Drip-off Weight Test Set
The HAVER Drip-off Weight Test Set is used for tests on products in the fish and meat processing industry, tinned fruits and vegetables. After introducing the products the tilting device can be fixed at an angle of inclination of approx. 17° to 20°. In addition a test sieve w 2.80 mm, an intermediate pan and a sieve pan with discharge nozzle belongs to this set.
|

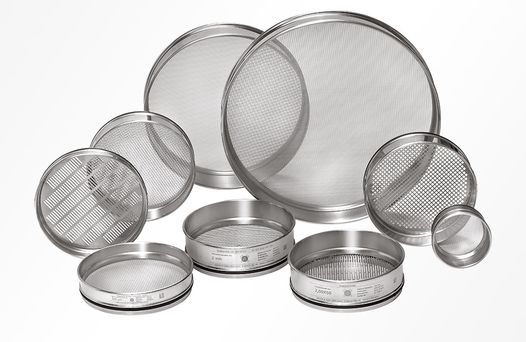

Test sieves of any size and any shape.
A NEXOPART test sieve is manufactured in compliance with the current test sieve standards and meets the requirements for a measuring instrument in accordance with ISO / IEC Guide 99:2007 to 100 percent. In addition to the standard test sieves, NEXOPART's product portfolio also includes grain sieves and tobacco sieves. A variety of frame materials such as stainless steel, wood or aluminum round off the range. First and foremost, you will be delighted with the accuracy and stability of NEXOPART test sieves.
 |
 |
Example: Blasting material for particle analysis
Products with high availability and a range of mesh sizes from 5 µm to 125 mm NEXOPART offers a wide range of test sieves, whether for manual sieving, conventional sieving, wet or dry sieving - you will find mesh sizes from 5 µm to 125 mm for analyzing your bulk material. Once you have found the right test sieve for you, you have nothing else to worry about. You do not have to wait long for your test sieve either. The components and materials for our test sieves are made in Germany, which means we can offer you high product availability and reasonably short delivery times. We also ensure short transportation routes and largely secure supply chains. At NEXOPART, you will always find the right standard-compliant test sieve for your sieving requirements - the test sieve that finds its way to you quickly.
|
 |

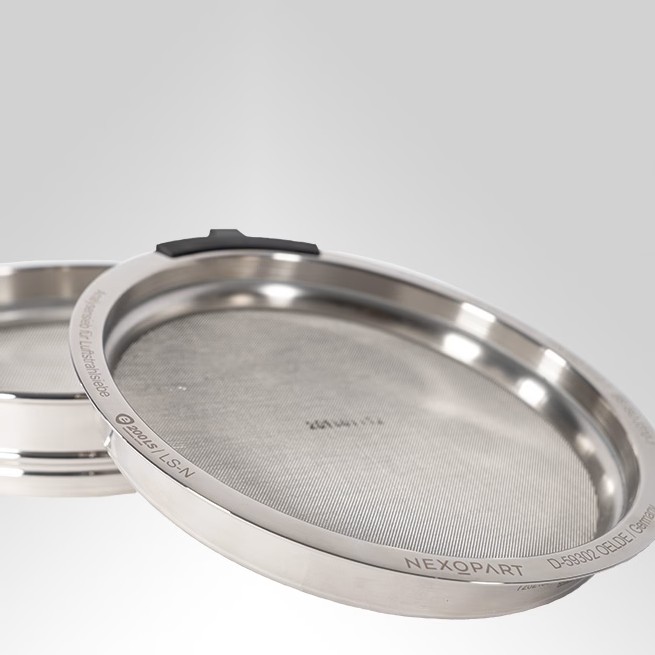

Long service life and perfect performance for your test sieve.
To ensure the long service life of a test sieve, we at NEXOPART use high-quality frame materials and our team has developed an extremely stable sieve design. In particular, the smooth frame surface of the test sieve prevents cross-contamination so that the sieve mesh retains good tension even after intensive use. The meticulous workmanship of the NEXOPART test sieve assures you perfect performance. Rely on test sieves made in Germany. Rely on NEXOPART.
|
Test certificates and services for your test sieve.
On request, NEXOPART will provide you with extensive test certificates and services for sustainable and compliance-oriented quality assurance. Everything from recertification of the measuring equipment in our factory laboratory – tested in accordance with DIN EN 10204 with acceptance test certificate 3.1 – to accredited calibration of metal mesh test sieves in accordance with DIN EN ISO/IEC 17025. This ensures traceability to the national measurement standards.
Take a look at how the NEXOPART UFA makes it possible to sieve fine powders at critical separation cuts of ≤ 300 μm with NEXOPART test sieves.
