หมวดหมู่สินค้า: Test Sieve Machines
เป็นอุปกรณ์ที่ใช้สำหรับแยกขนาดของอนุภาคในตัวอย่างวัสดุ โดยอาศัยหลักการที่ว่าอนุภาคที่มีขนาดต่างกันจะตกผ่านรูตาตะแกรงที่มีขนาดแตกต่างกันไป เมื่อนำตัวอย่างวัสดุไปร่อนบนตะแกรงชุดหนึ่ง ๆ อนุภาคที่มีขนาดใหญ่กว่ารูตาตะแกรงจะเหลืออยู่บนตะแกรง ในขณะที่อนุภาคที่มีขนาดเล็กกว่าจะตกผ่านรูตาตะแกรงลงไปในตะแกรงถัดไป
ราคา 0.00 บาท
23 มีนาคม 2569
ผู้ชม 58 ผู้ชม

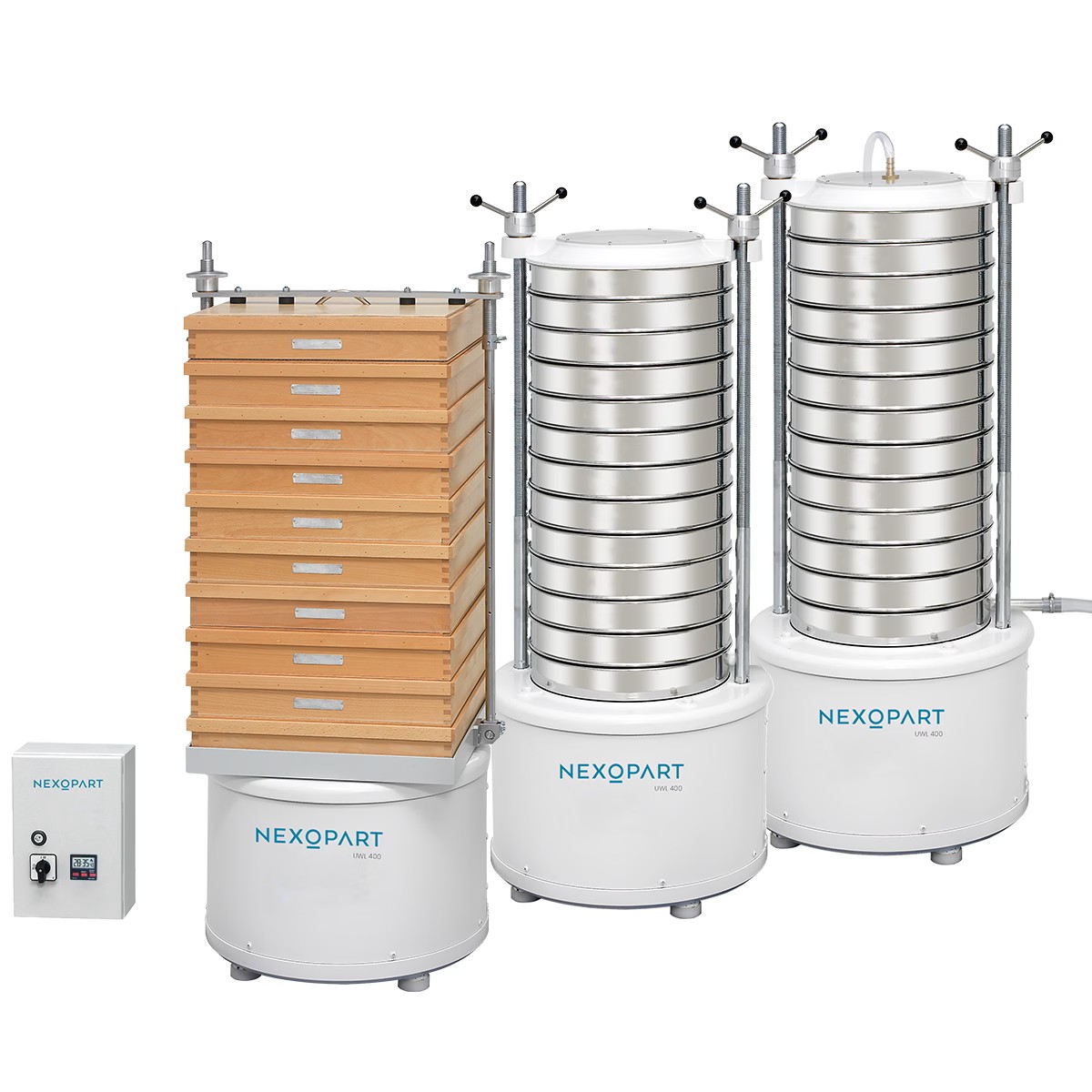

UWL 400 H with clamping system for beechwood sieve

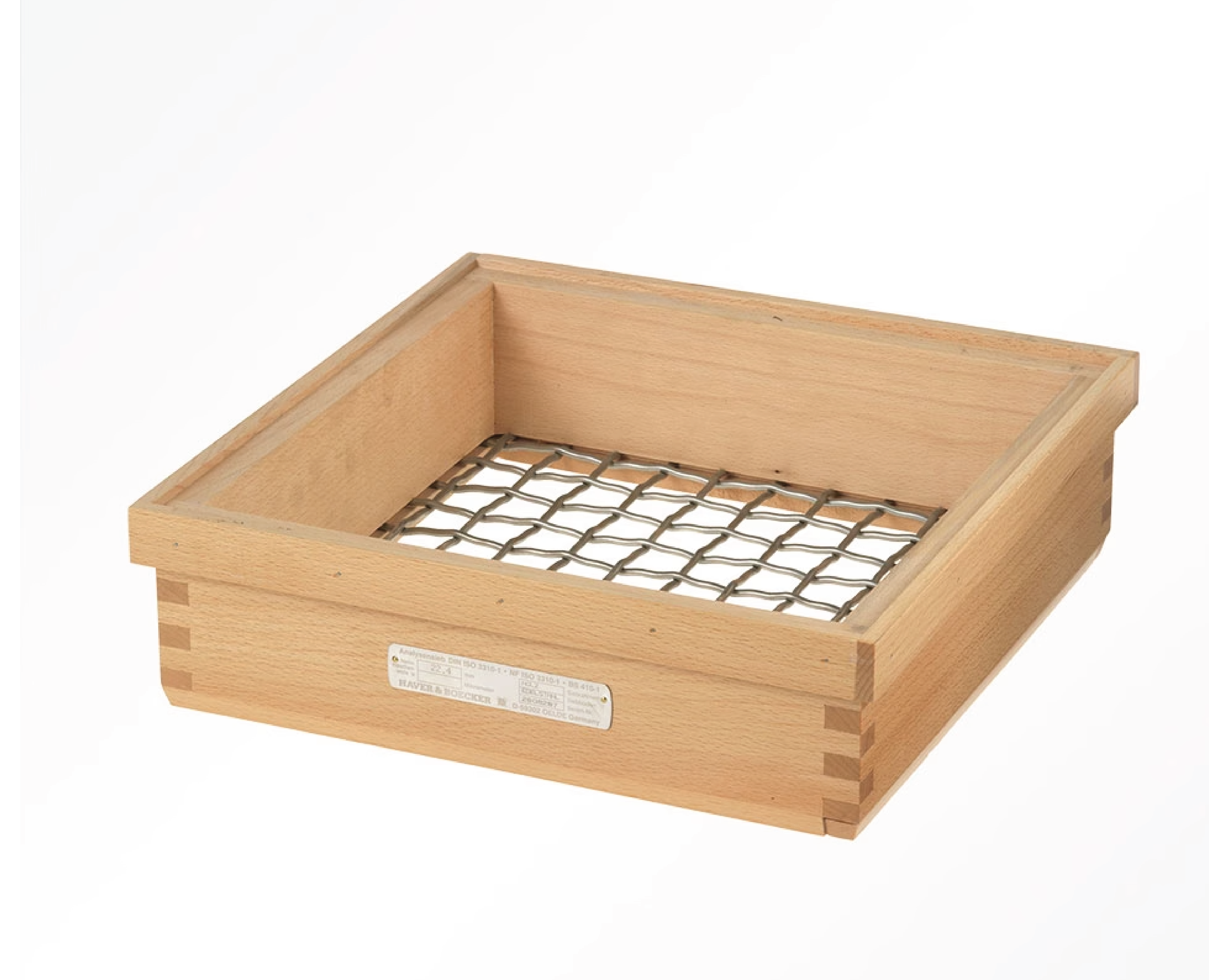

Complete with 1 special appliance for beechwood frames 300x300mm / 500x500 mm.
 |
Description
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
|
|||||||||
|
up to 20 kg |
UWL 400. For large and heavy bulk material up to 20 kg.

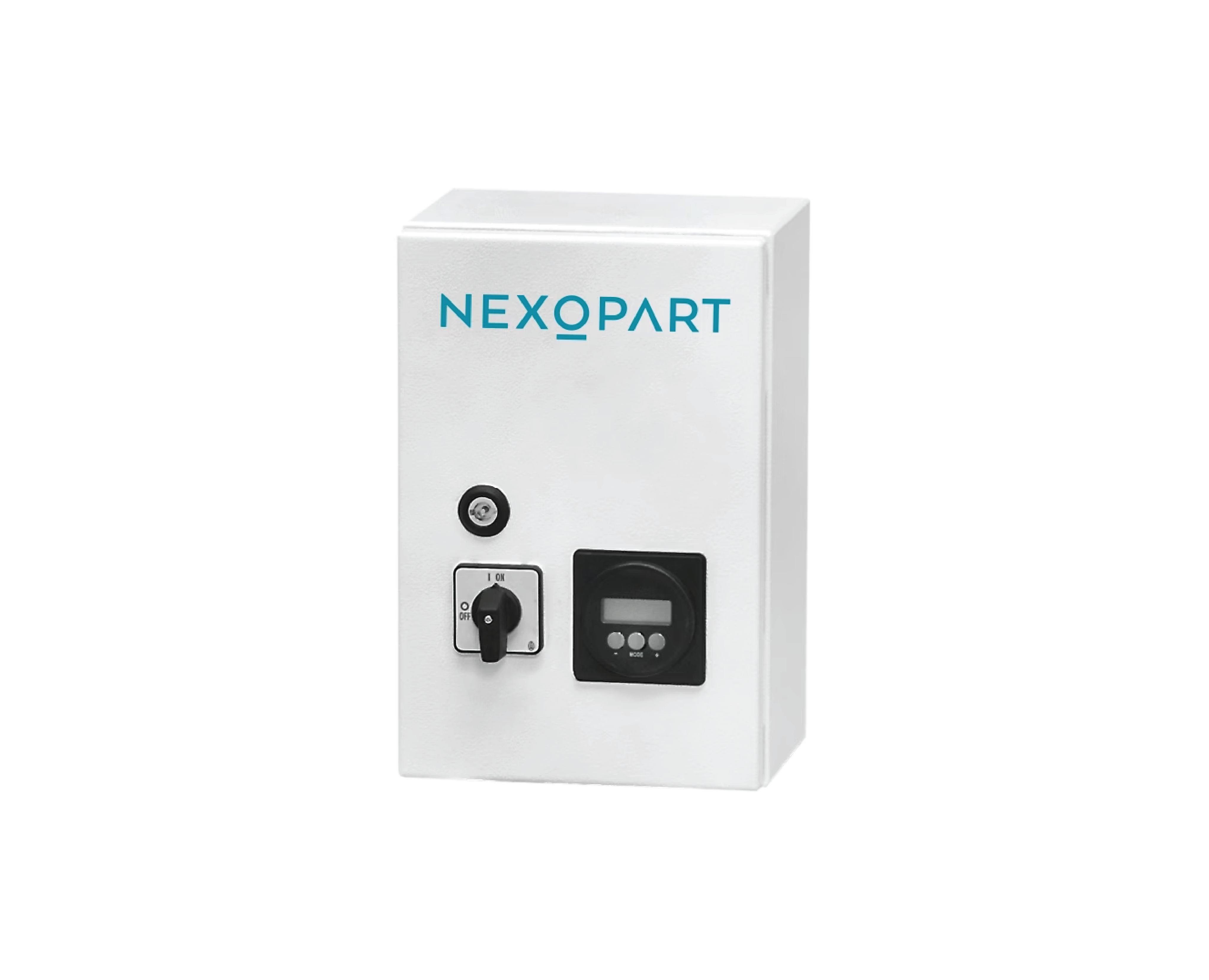

The UWL 400 is available for wet or dry sieving of bulk materials up to 20 kg. You can use test sieves with a diameter of up to 400 mm and operate your test sieve shaker quickly and easily via a separate control unit via plug-and-play.
 |
 |
Sieve shakers EML: Precise and reliable particle size analysis
The EML sieve shakers from NEXOPART are based on the principle of a vibrating sieve shaker and enable the preparation and particle size determination of dry and wet bulk solids. They are ideal for separating bulk material particles of different sizes. The electromagnetic drive (EML) ensures a three-dimensional throwing motion of the material to be sieved, which enables fast and accurate particle measurement.
|
Vibration sieve shakers are used in the areas of research and development, including in the pharmaceutical, food and chemical industries. They are not only suitable for the quality control of raw materials, but also for the control of intermediate and end products.
Are you looking for modern and easy-to-use products for your particle analysis? - The NEXOPART EML offers you a powerful, state-of-the-art solution. With the EML, NEXOPART sets new standards in precision, function and reliability.
Are you looking for modern and easy-to-use products for your particle analysis? - The NEXOPART EML offers you a powerful, state-of-the-art solution. With the EML, NEXOPART sets new standards in precision, function and reliability.
The advantages of EML sieve shakers.
| Our premium quality EML-series sieve shakers are flexible and high-performance. We never lose sight of our focus: Maximum accuracy and reliability of your analysis results.“EML” stands for 'electromagnetic line field' and describes the innovative drive technology of the vibration motor of our vibration sieve shakers. The electromagnetic drive does not require any rotating parts and is not only very robust, quiet and versatile, but also maintenance-free.All models in the EML series are equipped with a inspection glass. This allows you to check the sieving process at any time. The housing of the test sieve shakers is made of sturdy cast aluminum and, with its high-quality surface and slim fit, is ideal for laboratory use. |  |
3D sieving for maximum efficiency and accuracy.
|
The proven 3D sieving process for stones and gravel, granulates, fertilizers and seeds uses an electromagnetic drive (EML) that accelerates your sieving material vertically out of the mesh and simultaneously distributes it horizontally in a circular motion over the entire surface of the sieve. The combination of vertical and horizontal movement ensures an even distribution of the material, a high degree of selectivity and maximizes the efficiency of your particle size analysis. This process guarantees reproducible measurement results and significantly shortens sieving times.
|
 |
Automatic amplitude control for optimum sieving results.
|
NEXOPART's innovative G-Control technology offers automatic amplitude control, which ensures continuous acceleration measurement of the entire sieve tower. Regardless of the ambient conditions or sieve load, this advanced technology reliably compensates for all natural oscillations of the sieving machine and the subsurface. This ensures consistent and precise particle size analysis, making your sieving processes more efficient and accurate. With G-Control, you always achieve optimum sieving results, regardless of the conditions.
|
 |
Find out how and for what you can use the sieve shaker correctly
