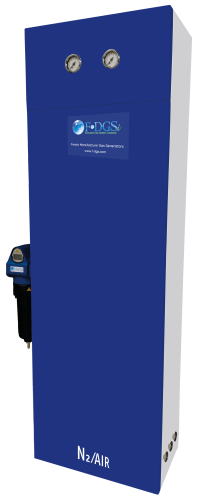

The Membrane Nitrogen/Air generator has been developed to meet specific requirements in terms of flow, purity and pressure for Sciex LC-MS.
Delivering one output of laboratory-grade nitrogen and two dry air outputs, the generators are available with different gas flows.
F-DGS’s STREAM 3G series generators have been engineered to provide Nitrogen and air to laboratories which already have an external source of clean, dry air.
These systems contain no moving parts, are effectively silent whilst in operation and require minimal maintenance.
Advantages product
IMPROVE LABORATORY EFFICIENCY
The relatively high gas volumes required by LCMS instruments make cylinder supply inappropriate for such applications. A constant, uninterrupted gas supply eliminates interruptions of analyses to change cylinders.
IMPROVE ANALYTICAL INSTRUMENTS PERFORMANCE
Production of a constant flow of gas improves the consistency of the analysis results and hence reproducibility.
IMPROVE ECONOMY
- Quick return on investment < 1 year
- No gas cylinder rental bottles, no price inflation
IMPROVE SAFETY
Nitrogen and dry air produced at low pressure and ambient temperature removes the hazards associated with high pressure cylinders and liquid Dewar’s.
SIMPLE INSTALLATION
Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere. No power supply is require.
Characteristics
- Capable of supplying multiple Sciex LC-MS instruments
- 24h/7 operation at optimum performance if required
- Gas is supplied on demand
- Completely silent in operation
- Wall mounted installation: Save space in the lab
- No noise: No mechanical parts moving
- No need of electricity supply
- Low maintenance: only to replace the filters once per year
Specifications
| Models GENERALS INFORMATIONS |
STREAM.12.3G | STREAM.27.3G | STREAM.54.3G | STREAM.85.3G |
| Max N2 Flow rate | 12 L/min @ 4.5 bar (65 psi) | 27 L/min @ 4.5 bar (65 psi) | 54 L/min @ 4.5 bar (65 psi) | 85 L/min @ 4.5 bar (65 psi) |
| Dry air outlet flow for the source gas | 26 L/min @ 7.6 bar (110 psi) | 46 L/min @ 7.6 bar (110 psi) | 55 L/min @ 7.6 bar (110 psi) | 85 L/min @ 7.6 bar (110 psi) |
| Dry air outlet flow for the exhaust gas | 16 L/min @ 4.1 bar (60 psi) | 23 L/min @ 4.1 bar (60 psi) | 46 L/min @ 4.1 bar (60 psi) | 60 L/min @ 4.1 bar (60 psi) |
| Air inlet pressure Min./Max. | 8 – 10 bar (116 – 145 psi) | |||
| Pressure loss | < 0.8 bar (12 psi) | |||
| N2 dewpoint at operating pressure | -40°C (-40°F) | |||
| Particles | < 0.01 ppm | |||
| Air flow rate required @ 8 bar (116 psi) | 115 L/min | 240 L/min | 330 L/min | |
| Suspended liquids | None | |||
| Temperature range | 10 – 35°C (50 – 95°F) | |||
| Dimensions (W x H x D) |
38 x 120 x 22.5 cm (15″ x 47″ x 9″) | |||
| Weight (kg/lbs) | 24 / 53 | 30 / 66 | ||
| CONNECTIONS | ||||
| Inlet/outlet | 1/4 G | |||
