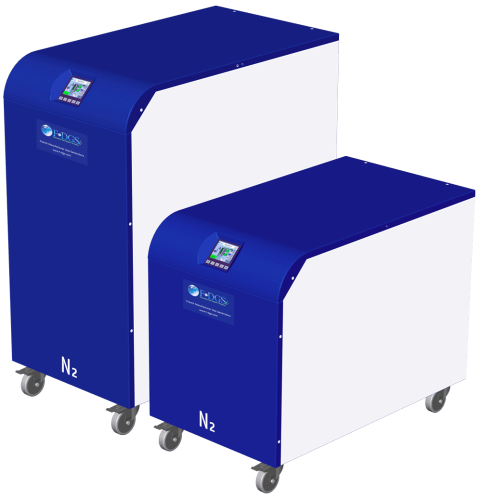

With 2 models, the CALYPSO DP.AG, specifically designed for the Agilent 6400 & 6500, to meet the drying, sheath, nebulisation, collision gas requirements. The CALYPSO DP.AG provides two differents purity of nitrogen from a single “plug & play” unit.
The CALYPSO DP.AG is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.
The generator is controlled using the latest in color touch screen technology to display the process in real time, inlet / outlet pressures, N2 Flows and status of the system with remote access for diagnostic control.
Utilizing Smart Triple Filtration and Advanced technology PSA of separating Nitrogen and Oxygen to produce high quality Nitrogen gas on demand 24/7.
Advantages product
INCREASED LABORATORY EFFICIENCY
A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.
IMPROVED ECONOMY
Pure nitrogen gas produced as standard.
IMPROVED SAFETY
Nitrogen produced at low pressure and ambient temperature removes the need for high pressure cylinders.
SECURITY OF SUPPLY
Integral oil free air compressor as an option guarantees continuous gas supply, independent of in house compressed air supply.
SIMPLE INSTALLATION
Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.
Characteristics
- Intelligent color touch screen to provide simple and user friendly management of all functions of the unit
- Fully regenerative PSA technology
- Two different nitrogen purities and pressures
- Smart triple filtratrion PSA technology producing analytical grade nitrogen gas > 99% and > 99,999% purity
- With integral oil free air compressor
- Quiet thanks to the Soundproofed compressor box and anti-vibration features
- Auto start
- Audible alarm display and Visual maintenance indication with history log
- Outlet flow indicator
- Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor - Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)
- Compact design
- Compressors redundancy
- Fit with wheels
Specifications
| Models | CALYPSO.DP.AG.35 | CALYPSO.DP.AG.70 |
| Compressor | 1 (With) | 1 (With) |
| GENERALS INFORMATIONS | ||
| Max Nitrogen Flow rate | 35 L/min @ 7 bar (101 psi) | 70 L/min @ 7 bar (101 psi) |
| High Purity Nitrogen Flow rate | 400ml/min @ 7 bar (101 psi) | 800ml/min @ 7 bar (101 psi) |
| Nitrogen purity | > 99% | |
| High Purity Nitrogen purity | > 99.999% | |
| Particles | 0.01 μ | |
| Touch screen | Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors) | |
| Max Relative Humidity | 80% RH @ 25°C (77°F) | |
| Temperature range | From 5 – 35°C (41 – 95°F) | |
| Max Altitude | 3000 Meters | |
| Noise level @ 1M | 53 dB (A) | |
| Dimensions (W x H x D) |
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″) | 47.5 x 100 x 79 cm (18.7’’ x 39’’ x 31’’) |
| Weight (kg/lbs) | 122 / 269 | 174 / 384 |
| Electrical supply |
220 – 240 V ac / 1 ph / 50 – 60 Hz |
|
|
110 – 120 V ac / 1 ph / 50 – 60 Hz |
||
| Fuse | 10A | |
| CONNECTIONS | ||
| Nitrogen outlet | 1/4″ GF | |
| Air Inlet | N /A | |
| COMMUNICATION | ||
| USB/PC Control | In series | |
